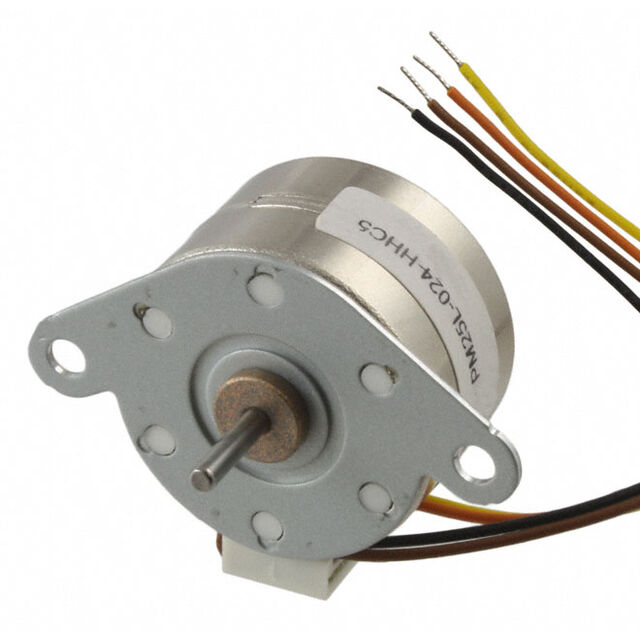

PM25L Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 18 °, 25 MN-M, 600 MA
| Part | Steps per Revolution | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Coil Type | Coil Resistance | Current Rating (Amps) | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Voltage - Rated | Features | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Termination Style | Step Angle | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 24 | 25 mm | Round | 0.984 " | 1.26 in | 32 mm | Bipolar | 8 Ohms | 600 mA | 3.7 oz-in | 26 mNm | 24 VDC | Round Shaft | 10 mm | 0.394 " | Wire Leads | 15 ° | 0.079 in | 2 mm | Permanent Magnet |
