1010422 Series
Manufacturer: Integrated Power Designs
Beta
⌘K
AC/DC CONVERTER +/-12V 25W
| Part | Features | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Voltage - Output 1 | Approval Agency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Power (Watts) | Current - Output 1 | Mounting Type | Voltage - Output 2 | Efficiency | Current - Output 2 | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

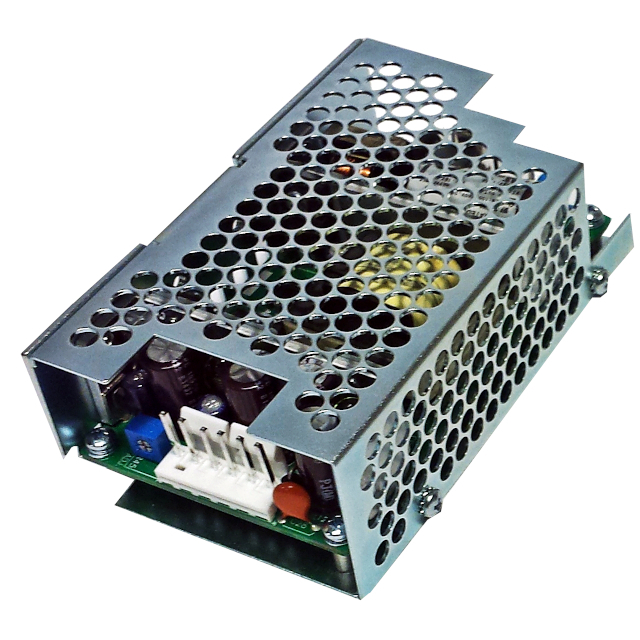

 Integrated Power Designs | Adjustable Output Universal Input | 60601-1; 62368-1 | 70 °C | 0 °C | Industrial ITE (Commercial) Medical | 100 VAC | 240 VAC | 2 | 12 V | CE cURus TUV UKCA | 106.9 mm | 2.47 " | 4.21 in | 35.6 mm | 62.7 mm | 1.4 " | 25 W | 1.5 A | Chassis Mount | -12 V | 69 % | 1.5 A | Enclosed |

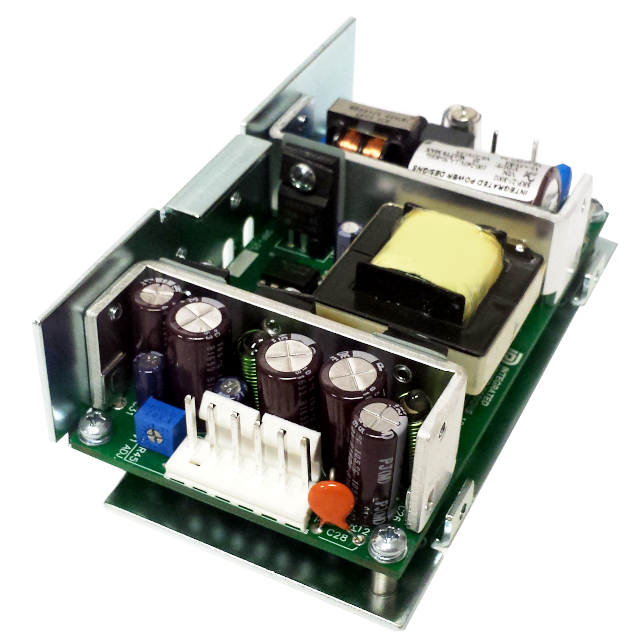

 Integrated Power Designs | Adjustable Output Universal Input | 60601-1; 62368-1 | 70 °C | 0 °C | Industrial ITE (Commercial) Medical | 100 VAC | 240 VAC | 2 | 12 V | CE cURus TUV UKCA | 106.9 mm | 2.47 " | 4.21 in | 35.6 mm | 62.7 mm | 1.4 " | 25 W | 1.5 A | Chassis Mount | -12 V | 69 % | 1.5 A | Chassis |
