STGAP Series

Catalog

DGTL ISO 2.5KV 1CH GATE DVR 24SO

Part	Package / Case	Package / Case [custom]	Package / Case [custom]	Voltage - Isolation	Rise / Fall Time (Typ)	Rise / Fall Time (Typ) [Max]	Number of Channels [custom]	Propagation Delay tpLH / tpHL (Max) [Max]	Qualification	Current - Output High, Low	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Technology	Grade	Pulse Width Distortion (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Approval Agency	Supplier Device Package

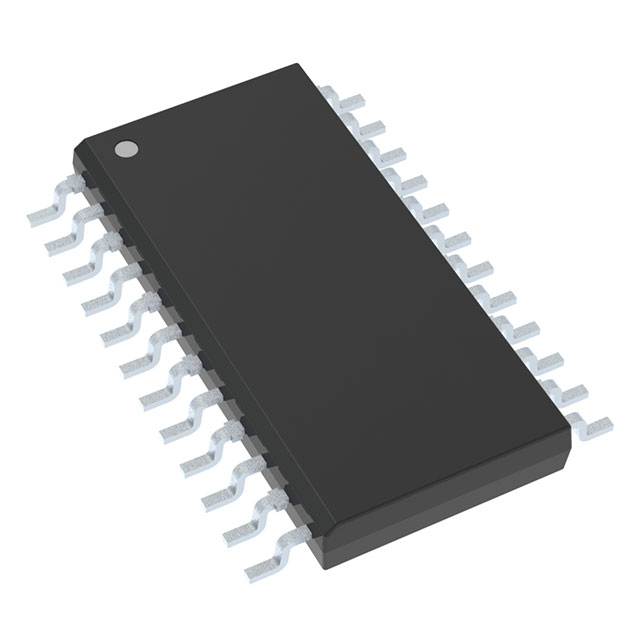

STMicroelectronics STGAP1STR	24-SOIC	7.5 mm	0.295 in	2500 Vrms	25 ns	25 ns	1	130 ns	AEC-Q100	2.5 A	4.5 V	36 V	Magnetic Coupling	Automotive	10 ns	125 °C	-40 C	Surface Mount	UL	24-SO
STMicroelectronics STGAP1S	24-SOIC	7.5 mm	0.295 in	2500 Vrms	25 ns	25 ns	1	130 ns	AEC-Q100	2.5 A	4.5 V	36 V	Magnetic Coupling	Automotive	10 ns	125 °C	-40 C	Surface Mount	UL	24-SO
