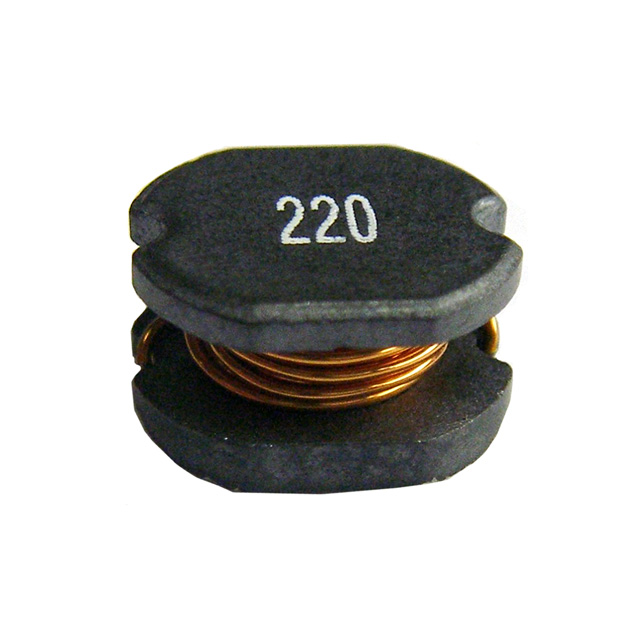

HM79 Series

Catalog

FIXED IND 180UH 360MA 1.022 OHM

Part	DC Resistance (DCR) [Max]	Inductance	Shielding	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	Type	Height - Seated (Max)	Height - Seated (Max) [Max]	DC Resistance (DCR)	Height - Seated (Max) [Max]
TT Electronics/BI Magnetics HM79-30181LFTR13	1.022 Ohm	180 µH	Unshielded	Nonstandard	Surface Mount	7.8 mm	7 mm	0.307 "	0.276 in	20 %	0.138 "	3.5 mm	360 mA	125 °C	-40 C	1 kHz	Wirewound
TT Electronics/BI Magnetics HM79-20220LFTR13	180 mOhm	22 µH	Unshielded	Nonstandard	Surface Mount	0.228 in	0.205 "	5.8 mm	5.2 mm	20 %	0.177 in	4.5 mm	1.11 A	125 °C	-40 C	100 kHz	Wirewound
TT Electronics/BI Magnetics HM79-50270LFTR13		27 µH	Unshielded	Nonstandard	Surface Mount	10 mm	9 mm	0.394 in	0.354 in	20 %			1.44 A	125 °C	-40 C	1 kHz	Wirewound	4 mm	0.157 in	100 mOhm
TT Electronics/BI Magnetics HM79-108R2LFTR13		8.2 µH	Unshielded	Nonstandard	Surface Mount	4.5 mm	4 mm	0.177 in	0.157 "	20 %			0.84 A	125 °C	-40 C	100 kHz	Wirewound		0.126 in	146 mOhm	3.2 mm
TT Electronics/BI Magnetics HM79-40330LFTR13		33 µH	Unshielded	Nonstandard	Surface Mount	7.8 mm	7 mm	0.307 "	0.276 in	20 %			1.2 A	125 °C	-40 C	1 kHz	Wirewound		0.197 in	130 mOhm	5 mm
TT Electronics/BI Magnetics HM79-10100LFTR13	182 mOhm	10 µH	Unshielded	Nonstandard	Surface Mount	4.5 mm	4 mm	0.177 in	0.157 "	20 %			1.04 A	125 °C	-40 C	100 kHz	Wirewound		0.126 in		3.2 mm
