PIC18LF67K40 Series

Catalog

MCU 8-BIT PIC18 PIC RISC 128KB FLASH 2.5V/3.3V/5V 64-PIN TQFP T/R

Part	Supplier Device Package	Speed	Peripherals	Number of I/O	Program Memory Type	Package / Case	Connectivity	Core Processor	Oscillator Type	Data Converters [custom]	Data Converters [custom]	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Core Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Data Converters	Data Converters	RAM Size	Data Converters [custom]	Data Converters [custom]
Microchip Technology PIC18F67K90T-I/PT	64-TQFP (10x10)	64 MHz	Brown-out Detect/Reset LCD POR PWM WDT	53	FLASH	64-TQFP	I2C LINbus SPI UART/USART	PIC	Internal	16	12 b	85 °C	-40 °C	4K x 8	8-Bit	1.8 V	5.5 V	Surface Mount
Microchip Technology PIC18F67J60-I/PT	64-TQFP (10x10)	41.667 MHz		39 I/O	FLASH	64-TQFP	Ethernet I2C SPI UART/USART	PIC	Internal			85 °C	-40 °C	3808 x 8	8-Bit	2 V	3.6 V	Surface Mount	A/D	10 b 11
Microchip Technology PIC18F67J10T-I/PT	64-TQFP (10x10)	40 MHz		50 I/O	FLASH	64-TQFP	I2C SPI UART/USART	PIC	Internal			85 °C	-40 °C		8-Bit	2 V	3.6 V	Surface Mount	A/D	10 b 11	3.8 K
Microchip Technology PIC18F67K40T-I/MR	64-VQFN (9x9)	64 MHz		60	FLASH	64-VFQFN Exposed Pad	I2C LINbus SPI UART/USART	PIC	Internal			85 °C	-40 °C		8-Bit	2.3 V	5.5 V	Surface Mount			3.5 K	1 47	5 b 10 b

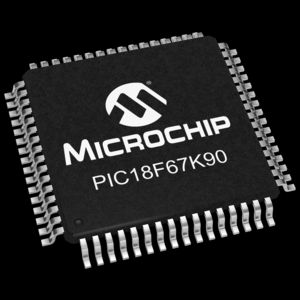

Microchip Technology PIC18F67K90-I/MRRSL	64-VQFN (9x9)	64 MHz	Brown-out Detect/Reset LCD POR PWM WDT	53	FLASH	64-VFQFN Exposed Pad	I2C LINbus SPI UART/USART	PIC	Internal	16	12 b	85 °C	-40 °C	4K x 8	8-Bit	1.8 V	5.5 V	Surface Mount
Microchip Technology PIC18LF67K40-E/PT	64-TQFP (10x10)	64 MHz		60	FLASH	64-TQFP	I2C LINbus SPI UART/USART	PIC	Internal			125 °C	-40 °C		8-Bit	1.8 V	3.6 V	Surface Mount			3.5 K	1 47	5 b 10 b
Microchip Technology PIC18F67K22T-I/PTRSL	64-TQFP (10x10)	64 MHz	Brown-out Detect/Reset LVD POR PWM WDT	53	FLASH	64-TQFP	I2C LINbus SPI UART/USART	PIC	Internal	16	12 b	85 °C	-40 °C	4K x 8	8-Bit	1.8 V	5.5 V	Surface Mount
Microchip Technology PIC18F67K22-E/PT	64-TQFP (10x10)	64 MHz	Brown-out Detect/Reset LVD POR PWM WDT	53	FLASH	64-TQFP	I2C LINbus SPI UART/USART	PIC	Internal	16	12 b	125 °C	-40 °C	4K x 8	8-Bit	1.8 V	5.5 V	Surface Mount
Microchip Technology PIC18F67J50T-I/PT	64-TQFP (10x10)	48 MHz	Brown-out Detect/Reset LVD POR PWM WDT	49	FLASH	64-TQFP		PIC	Internal	8	10	85 °C	-40 °C		8-Bit	2 V	3.6 V	Surface Mount			3.8 K
Microchip Technology PIC18F67K22T-I/MRRSL	64-VQFN (9x9)	64 MHz	Brown-out Detect/Reset LVD POR PWM WDT	53	FLASH	64-VFQFN Exposed Pad	I2C LINbus SPI UART/USART	PIC	Internal	16	12 b	85 °C	-40 °C	4K x 8	8-Bit	1.8 V	5.5 V	Surface Mount

Catalog

Key Features

• * PIC18 Core with 83 Instructions, 31 Stack Levels

• * Internal 64MHz oscillator

• * Operating Voltage Range:- ‘F’ Version (2.3V – 5.5V)- Low Power ‘LF’ variant (1.8V – 3.6V)

• * Temperature Range:- Industrial Version (-40C to 85C)- Extended Version (-40C to 125C)

• * 128 KB Flash Program Memory with self read/write capability

• * 3562 Bytes Data SRAM Memory

• * 1024 Bytes of EEPROM

• * 47 x 10-bit ADC channels

• * 1 x 5-bit DAC

• * 3 x Comparators

• * Fixed Voltage Reference (FVR) module - 1.024V, 2.048V and 4.096V output levels

• * Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders

• * 1 x Zero-Cross Detect

• * 2 x I2C/SPI

• * 5 x EUSART with LIN support

• * CRC with Memory Scan

• * Windowed Watchdog Timer (WWDT)

• * 1 x Hardware Limit Timer (HLT)

• * 1 x Complementary Waveform Generator

• * 2 x standalone 10-bit PWM modules

• * 5 x Capture/Compare/PWM modules

• * Five 8-bit Timers/Counters

• * Four 16-bit Timers/Counters

• * 1 x Hardware Limit Timer (HLT)

• * Extended Watchdog Timer (WDT)

• * 2 x Signal Measurement Timer (SMT)

• * eXtreme Low Power (XLP) technology

• * Doze, Idle, and Sleep Power Saving Operating Modes

• * Sleep mode: 50nA @ 1.8V, typical

• * Active mode: 32uA/MHz @ 1.8V, typical

• * Low Current Power-on Reset (POR)

• * Brown-out Reset (BOR)

• * Low-Power BOR (LPBOR)

• * Peripheral Pin Select

• * In-Circuit Debug Integrated On-Chip

• * In-Circuit Serial Programing (ICSP) via Two Pins

Description

Featuring nanoWatt XLP Technology, this 8-bit microcontroller is well suited for power-constrained and battery-powered applications. The Charge Time Measurement Unit (CTMU) simplifies the design of capacitive touch applications and can enable other applications requiring precise time and/or temperature measurement. Robust features such as wide operating voltage and temperature ranges and high endurance flash program and data EEPROM make this an excellent microcontroller for rugged automotive and industrial applications. Additional peripherals, such as a 12-bit A/D converter, 3 comparators H/W RTCC, 10 total CCP/ECCP channels, 11 total timers and 53 general purpose I/O, give this cost-effective microcontroller seemingly limitless possibilities in a variety of applications where high performance with low cost is required.
