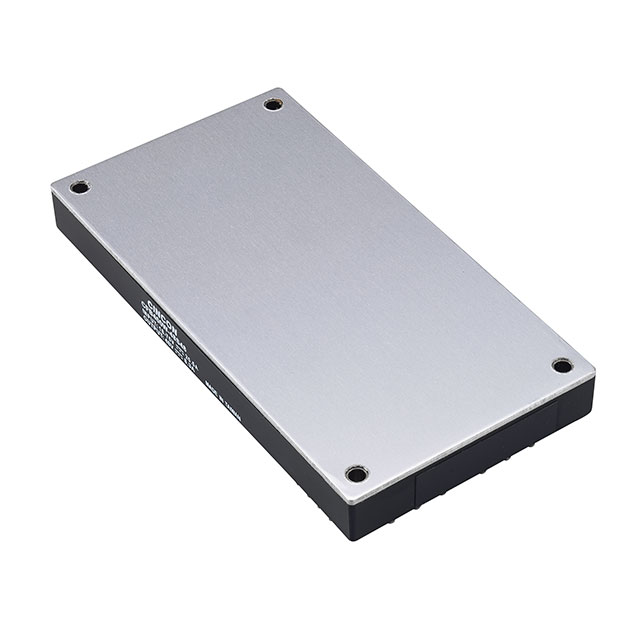

CFB400 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Cincon Electronics Co. LTD

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Approval Agency	Power (Watts)	Efficiency	Control Features	Type	Voltage - Input (Min) [Min]	Supplier Device Package	Package / Case	Current - Output (Max) [Max]	Applications	Mounting Type	Voltage - Input (Max) [Max]	Number of Outputs	Standard Number	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Features
Cincon Electronics Co. LTD CFB400W-24S28	CE cURus	400 W	87 %	Active Low Enable	Isolated Module	9 V	Full Brick	Full Brick	14.3 A	ITE (Commercial)	Through Hole	36 V	1	60950-1	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	28 V	-40 °C	100 °C	OCP OTP OVP Remote On/Off

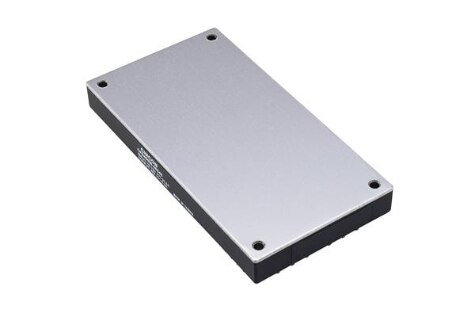

Cincon Electronics Co. LTD CFB400W-48S12P	CE cURus	400 W	88.5 %	Active High Enable	Isolated Module	18 V	Full Brick	Full Brick	33.3 A	ITE (Commercial)	Through Hole	75 V	1	60950-1	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	12 V	-40 °C	100 °C	OCP OTP OVP Remote On/Off
Cincon Electronics Co. LTD CFB400W-48S24	CE cURus	401 W	90 %	Active Low Enable	Isolated Module	18 V	Full Brick	Full Brick	16.7 A	ITE (Commercial)	Through Hole	75 V	1	60950-1	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	24 V	-40 °C	100 °C	OCP OTP OVP Remote On/Off
Cincon Electronics Co. LTD CFB400W-24S05	CE cURus	400 W	87.5 %	Active Low Enable	Isolated Module	9 V	Full Brick	Full Brick	80 A	ITE (Commercial)	Through Hole	36 V	1	60950-1	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	5 V	-40 °C	100 °C	OCP OTP OVP Remote On/Off
Cincon Electronics Co. LTD CFB400W-24S12	CE cURus	400 W	86 %	Active Low Enable	Isolated Module	9 V	Full Brick	Full Brick	33.3 A	ITE (Commercial)	Through Hole	36 V	1	60950-1	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	12 V	-40 °C	100 °C	OCP OTP OVP Remote On/Off
Cincon Electronics Co. LTD CFB400W-24S24P	CE cURus	401 W	87 %	Active High Enable	Isolated Module	9 V	Full Brick	Full Brick	16.7 A	ITE (Commercial)	Through Hole	36 V	1	60950-1	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	24 V	-40 °C	100 °C	OCP OTP OVP Remote On/Off
Cincon Electronics Co. LTD CFB400W-24S12P	CE cURus	400 W	86 %	Active High Enable	Isolated Module	9 V	Full Brick	Full Brick	33.3 A	ITE (Commercial)	Through Hole	36 V	1	60950-1	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	12 V	-40 °C	100 °C	OCP OTP OVP Remote On/Off
Cincon Electronics Co. LTD CFB400W-48S28	CE cURus	400 W	90 %	Active Low Enable	Isolated Module	18 V	Full Brick	Full Brick	14.3 A	ITE (Commercial)	Through Hole	75 V	1	60950-1	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	28 V	-40 °C	100 °C	OCP OTP OVP Remote On/Off
Cincon Electronics Co. LTD CFB400W-24S48	CE cURus	399 W	86.5 %	Active Low Enable	Isolated Module	9 V	Full Brick	Full Brick	8.3 A	ITE (Commercial)	Through Hole	36 V	1	60950-1	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	48 V	-40 °C	100 °C	OCP OTP OVP Remote On/Off
Cincon Electronics Co. LTD CFB400W-48S48P	CE cURus	399 W		Active High Enable	Isolated Module	18 V	Full Brick	Full Brick	8.3 A	ITE (Commercial)	Through Hole	75 V	1	60950-1	1.5 kV	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	48 V	-40 °C	100 °C	OCP OTP OVP Remote On/Off
