FH65 Series

Catalog

CONN FFC BOTTOM 34POS 0.5MM R/A

Part	Mating Cycles	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Housing Color	Actuator Color	Cable End Type	Flat Flex Type	Pitch	Pitch	Termination	FFC, FCB Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Connector/Contact Type	Actuator Material	Height Above Board [z]	Height Above Board [z]	Mounting Type	Number of Positions [custom]	Locking Feature	Contact Material	Voltage Rating	Contact Finish	Features	Material Flammability Rating	Number of Positions
Hirose Electric Co Ltd FH65-34S-0.5SH	20	1.25 Áin	0.03 Ám	0.5 A	Gray	Black	Tabbed	FFC FPC	0.02 "	0.5 mm	Solder	0.3 mm	125 °C	-40 C	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Bottom	Polyphenylene Sulfide (PPS)	1.2 mm	0.047 "	Right Angle Surface Mount	34	Flip Lock	Copper Alloy	50 V	Gold

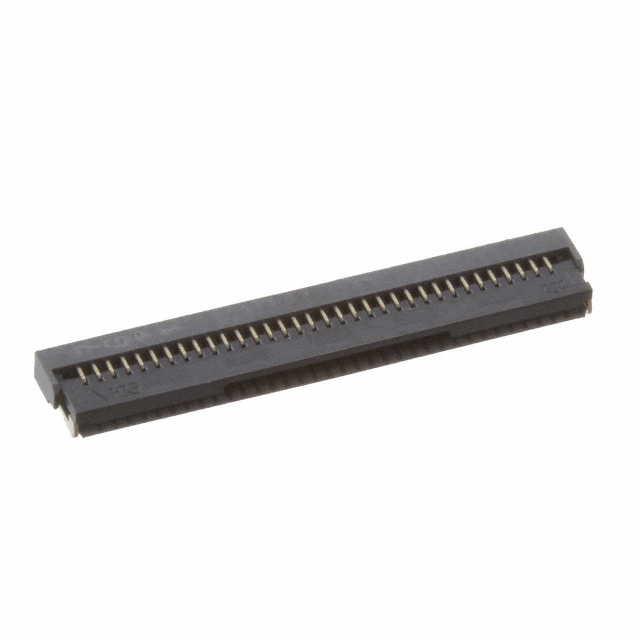

Hirose Electric Co Ltd FH65-34S-0.5SH(99)	20	1.25 Áin	0.03 Ám	0.5 A	Gray	Black	Tabbed	FFC FPC	0.02 "	0.5 mm	Solder	0.3 mm	125 °C	-40 C	Liquid Crystal Polymer (LCP) Halogen Free	Contacts Bottom	Polyphenylene Sulfide (PPS)	1.2 mm	0.047 "	Right Angle Surface Mount	34	Flip Lock	Copper Alloy	50 V	Gold

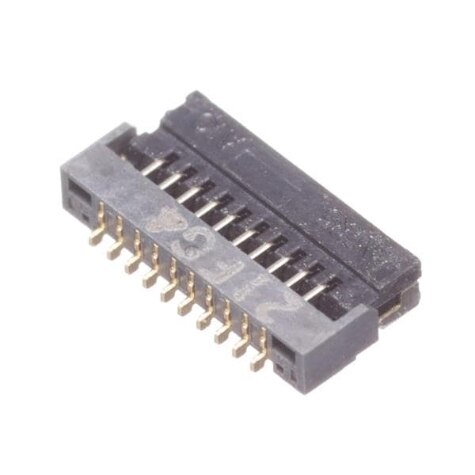

Hirose Electric Co Ltd FH65-10S-0.5SH				0.5 A	Gray	Black	Tabbed	FFC FPC	0.02 "	0.5 mm	Solder	0.3 mm	125 °C	-40 C	Liquid Crystal Polymer (LCP)	Contacts Bottom	Polyphenylene Sulfide (PPS)	1.2 mm	0.047 "	Right Angle Surface Mount		Flip Lock	Copper Alloy	50 V	Gold	Solder Retention	UL94 V-0	10
