THL 3 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 5V 3W
| Part | Type | Voltage - Input (Min) [Min] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output 1 | Voltage - Input (Max) [Max] | Number of Outputs | Current - Output (Max) [Max] | Applications | Mounting Type | Features | Voltage - Isolation | Efficiency | Power (Watts) | Voltage - Output 2 | Size / Dimension [y] | Size / Dimension [z] | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

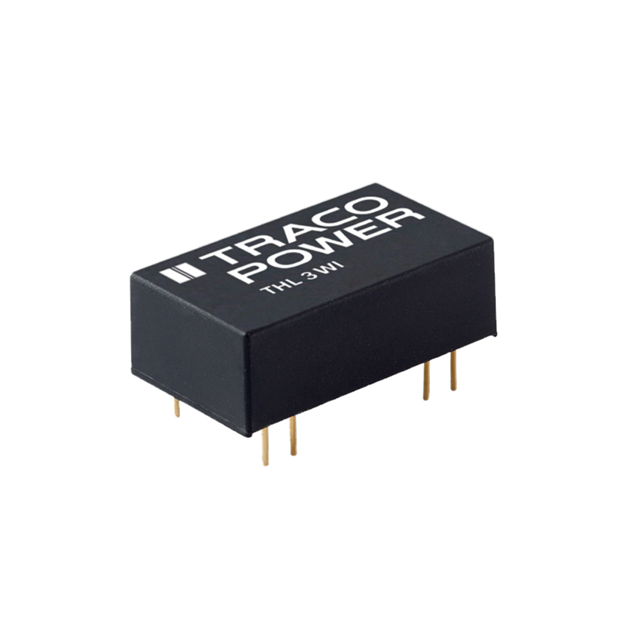

 Traco Power | Isolated Module | 9 V | 16-DIP Module 7 Leads | -40 °C | 85 °C | 0.31 " | 0.94 in | 0.54 in | 13.7 mm | 23.8 mm | 8 mm | 5 V | 36 V | 1 | 600 mA | ITE (Commercial) | Through Hole | Remote On/Off SCP | 1.5 kV | 78 % | 3 W | |||||

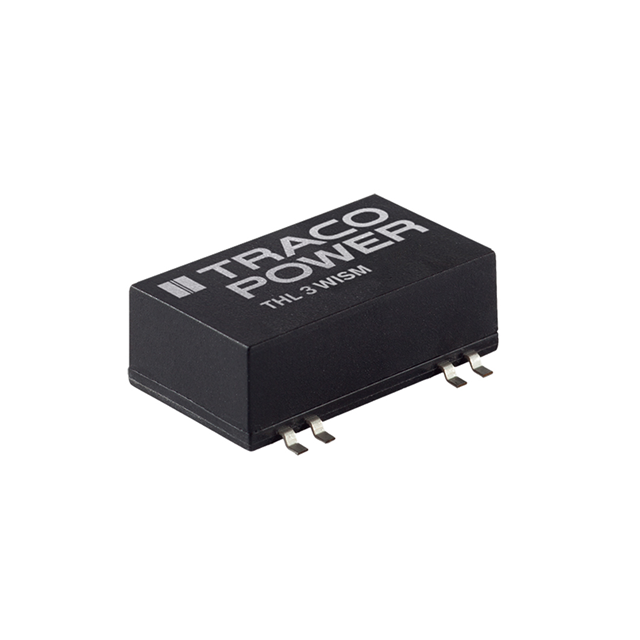

 Traco Power | Isolated Module | 9 V | 16-SMD Module 7 Leads | -40 °C | 85 °C | 0.32 " | 0.94 in | 0.54 in | 24 mm | 15 V | 36 V | 2 | ITE (Commercial) | Surface Mount | Remote On/Off SCP | 1.5 kV | 80 % | 3 W | -15 V | 13.7 mm | 8.3 mm | 100 mA | 100 mA | |||
 Traco Power | Isolated Module | 18 V | 16-SMD Module 7 Leads | -40 °C | 85 °C | 0.32 " | 0.94 in | 0.54 in | 24 mm | 5 V | 75 V | 1 | 600 mA | ITE (Commercial) | Surface Mount | Remote On/Off SCP | 1.5 kV | 78 % | 3 W | 13.7 mm | 8.3 mm |
