RTQ035 Series

Catalog

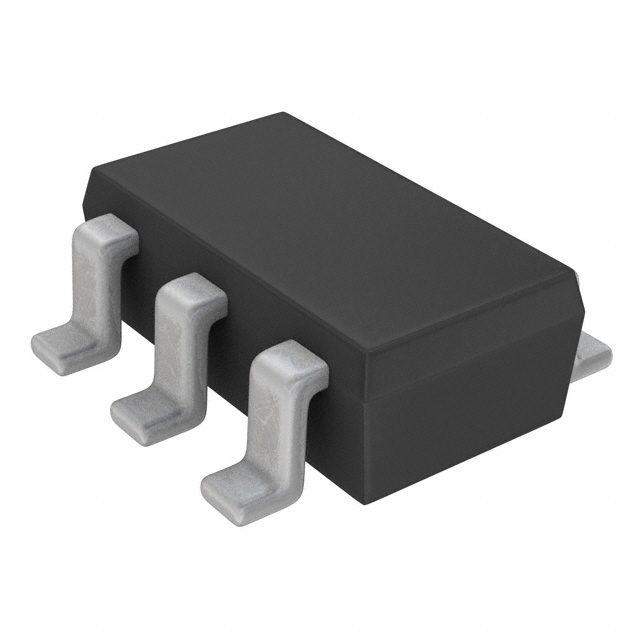

MOSFET N-CH 30V 3.5A TSMT6

Part	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]	Gate Charge (Qg) (Max) @ Vgs	Operating Temperature	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max) [Max]	Supplier Device Package	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Technology	FET Type	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]
Rohm Semiconductor RTQ035N03TR	2.5 V	4.5 V	6.4 nC	150 °C	30 V	285 pF	SOT-23-6 Thin TSOT-23-6	12 V	3.5 A	1.25 W	TSMT6 (SC-95)	54 mOhm	1.5 V	MOSFET (Metal Oxide)	N-Channel	Surface Mount
Rohm Semiconductor RTQ035P02TR	2.5 V	4.5 V		150 °C	20 V	1200 pF	SOT-23-6 Thin TSOT-23-6	12 V	3.5 A	1.25 W	TSMT6 (SC-95)	65 mOhm	2 V	MOSFET (Metal Oxide)	P-Channel	Surface Mount	10.5 nC
