BXEB-TL-2750 Series
Manufacturer: BRIDGELUX
Beta
⌘K

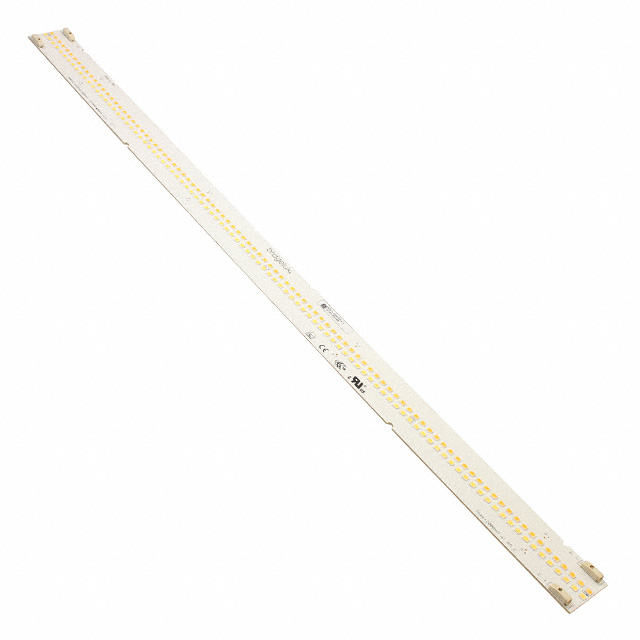

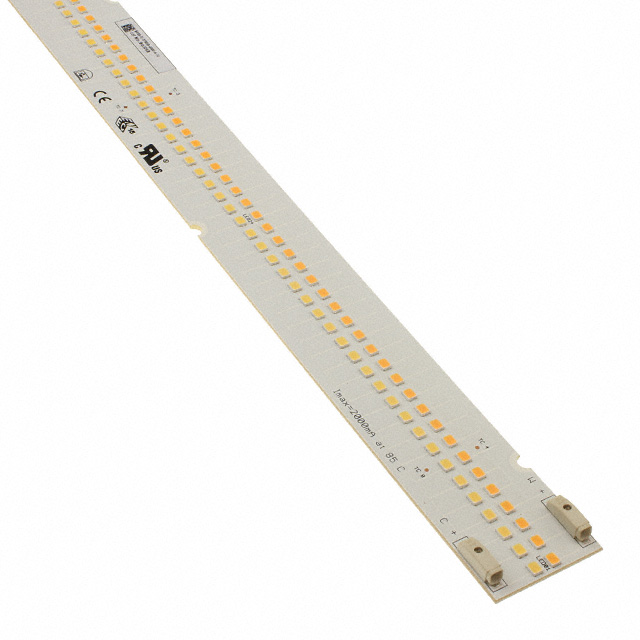

LED MOD VESTA WHT LNR STRP 5000K
| Part | Viewing Angle | Type | Luminous Flux @ Current/Temperature | Lens Type | Color | Temperature - Test | Size / Dimension [x] | Size / Dimension [y] | CCT (K) | Current - Test | Configuration | Lumens/Watt @ Current - Test | Voltage - Forward (Vf) (Typ) | CRI (Color Rendering Index) | Height [z] | Current - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BRIDGELUX | 120 ° | LED Module | 1596 lm 1676 lm | Flat | White Cool White Warm | 25 °C | 280 mm | 31 mm | 2700K 3-Step MacAdam Ellipse 5000K 3-Step MacAdam Ellipse | 500 mA | Linear Light Strip | 129 lm/W 135 lm/W | 24.8 V | 90 | 6.1 mm | 1 A |
