333-043 Series
Manufacturer: EDAC Inc.
Beta
⌘K

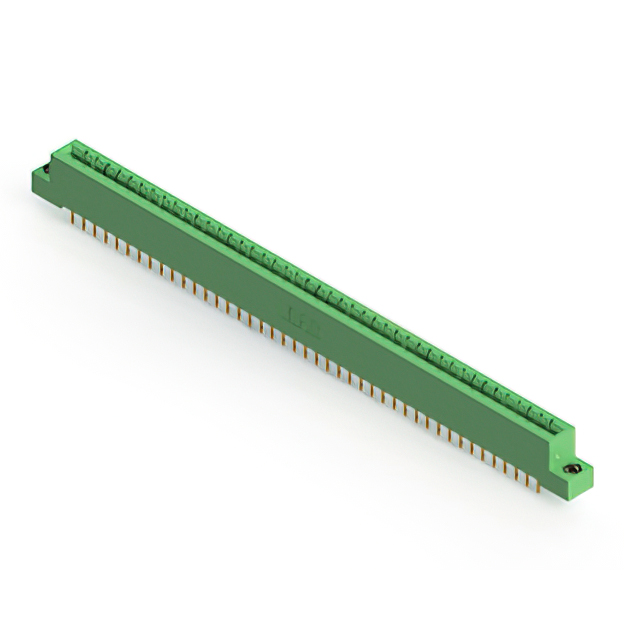

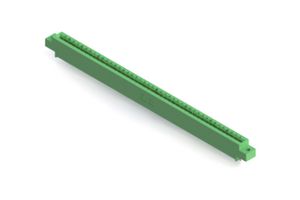

CONN EDGE SGL FMALE 43POS 0.156
| Part | Termination Rows | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Mounting Type | Number of Positions | Gender | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Contact Finish | Read Out | Card Type | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Color | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Through Hole | 43 | Female | Cantilever | -40 C | 105 ░C | 43 | Gold | Single | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Wire Wrap | 0.25 Ám | 10 Áin |
 EDAC Inc. | 1 | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | Copper Alloy | Through Hole | 43 | Female | Cantilever | -40 C | 105 ░C | 43 | Gold | Single | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Solder | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.128 " | 3.25 mm | Copper Alloy | Through Hole | 43 | Female | Cantilever | -40 C | 105 ░C | 43 | Gold | Single | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Wire Wrap | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | Through Hole | 43 | Female | Cantilever | -40 C | 105 ░C | 43 | Gold | Single | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Wire Wrap | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Through Hole | 43 | Female | Cantilever | -40 C | 105 ░C | 43 | Gold | Single | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Wire Wrap | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 0.156 " | 3.96 mm | Copper Alloy | Through Hole | 43 | Female | Cantilever | -40 C | 105 ░C | 43 | Gold | Single | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Wire Wrap | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Right Angle Through Hole | 43 | Female | Cantilever | -40 C | 105 ░C | 43 | Gold | Single | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Wire Wrap | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Right Angle Through Hole | 43 | Female | Cantilever | -40 C | 105 ░C | 43 | Gold | Single | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Wire Wrap | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Copper Alloy | Through Hole | 43 | Female | Cantilever | -40 C | 105 ░C | 43 | Gold | Single | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Wire Wrap | 0.25 Ám | 10 Áin |
 EDAC Inc. | 1 | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | Copper Alloy | Right Angle Through Hole | 43 | Female | Cantilever | -40 C | 105 ░C | 43 | Gold | Single | Non Specified - Single Edge | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Green | Wire Wrap | 0.25 Ám | 10 Áin |
