SE18K1 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

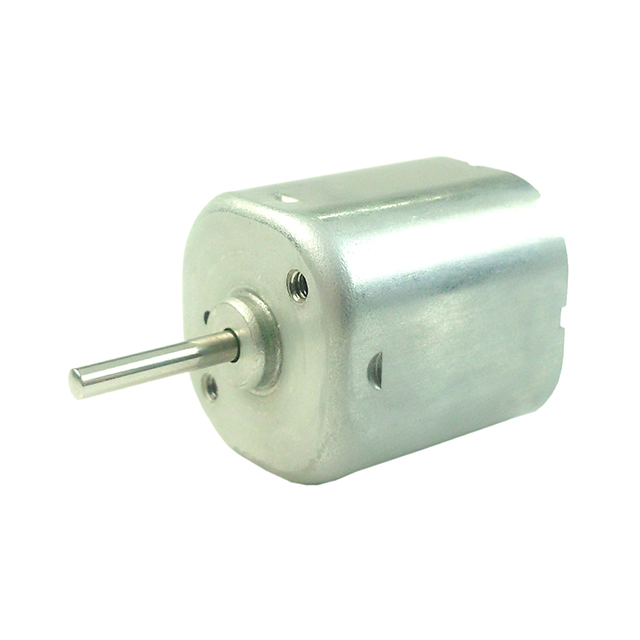

STANDARD MOTOR 4050 RPM 12V
| Part | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Weight | Weight | Termination Style | Motor Type | Torque - Rated (oz-in / mNm) | Torque - Rated (oz-in / mNm) | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension | RPM | Function | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 14 mm | 0.551 in | 0.39 in | 9.9 mm | 0.07 lb | 31.75 g | Connector | Brushed | 0.708 oz-in | 5 mNm | 0.079 in | 2 mm | DC Motor | 0.717 in | 0.717 in | 18.2 mm | 18.2 mm | 4050 RPM | Standard | 12 VDC |
