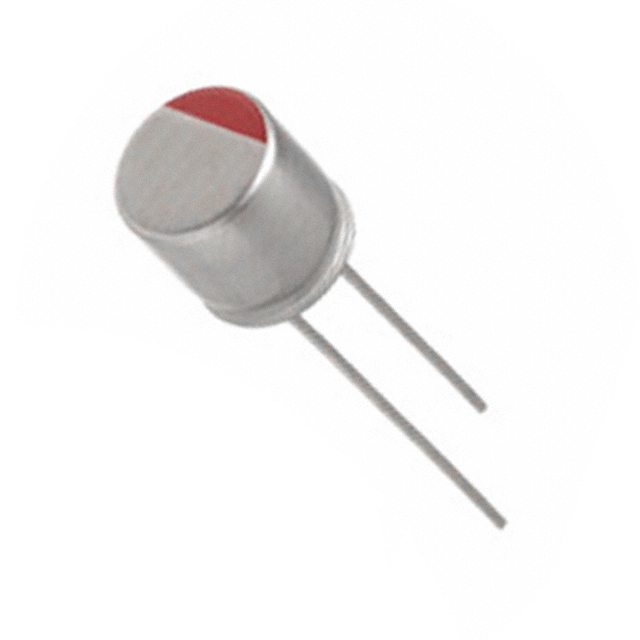

RL8 Series

Manufacturer: Nichicon

Catalog

ELECTROLYTIC CAPACITOR, 560 ΜF, 2.5 V, ± 20%, PC PIN, 10000 HOURS @ 105°C, POLAR

Part	Ripple Current @ High Frequency	Applications	Lifetime @ Temp.	Package / Case	ESR (Equivalent Series Resistance)	Tolerance	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Voltage - Rated	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing
Nichicon RL80E561MDNASQKX	6.1 A	General Purpose	5000 Hrs	Can Radial	6 mOhms	20 %	610 mA	0.315 in	8 mm	Polymer	2.5 V	560 µF	8 mm	0.315 in	Through Hole	-55 C	105 ░C	0.138 in	3.5 mm
Nichicon RL81C221MDN1		General Purpose	2000 Hrs	Can Radial	12 mOhms	20 %	500 mA	0.315 in	8 mm	Polymer	16 V	220 µF	9 mm	0.354 in	Through Hole	-55 C	105 ░C	0.138 in	3.5 mm
Nichicon RL81C271MDNASQKX		General Purpose	5000 Hrs	Can Radial	10 mOhm	20 %	500 mA	0.315 in	8 mm	Polymer	16 V	270 µF	9 mm	0.354 in	Through Hole	-55 C	105 ░C	0.138 in	3.5 mm
Nichicon RL80G561MDNASQPX	6.1 A	General Purpose	5000 Hrs	Can Radial	6 mOhms	20 %	610 mA	0.315 in	8 mm	Polymer	4 V	560 µF	9 mm	0.354 in	Through Hole	-55 C	105 ░C	0.138 in	3.5 mm
Nichicon RL80J471MDNASQ	5.7 A	General Purpose	5000 Hrs	Can Radial	8 mOhms	20 %	570 mA	0.315 in	8 mm	Polymer	6.3 VDC	470 µF	9 mm	0.354 in	Through Hole	-55 C	105 ░C	0.138 in	3.5 mm
Nichicon RL81C221MDN1PX		General Purpose	2000 Hrs	Can Radial	12 mOhms	20 %	500 mA	0.315 in	8 mm	Polymer	16 V	220 µF	9 mm	0.354 in	Through Hole	-55 C	105 ░C	0.197 "	5 mm
Nichicon RL81C181MDN1PX		General Purpose	2000 Hrs	Can Radial	12 mOhms	20 %	500 mA	0.315 in	8 mm	Polymer	16 V	180 µF	9 mm	0.354 in	Through Hole	-55 C	105 ░C	0.138 in	3.5 mm
Nichicon RL80G561MCN1
Nichicon RL80E821MCNASQ
Nichicon RL81C101MDN1KX		General Purpose	2000 Hrs	Can Radial	12 mOhms	20 %	500 mA	0.315 in	8 mm	Polymer	16 V	100 µF	9 mm	0.354 in	Through Hole	-55 C	105 ░C	0.138 in	3.5 mm
