Power MOSFET 16V, 34.5A Single N-Channel
Key Features
• Low Rds(on)
• Low Capacitance
• Optimized Gate Charge
• Pb-Free
Description
AI
Power MOSFET, 16V, 34.5A, Single N-Channel
Beta
⌘K
Power MOSFET 16V, 34.5A Single N-Channel
Power MOSFET 16V, 34.5A Single N-Channel
| Part | Rds On (Max) @ Id, Vgs | Technology | Drain to Source Voltage (Vdss) | Input Capacitance (Ciss) (Max) @ Vds | Package / Case | Supplier Device Package | Vgs (Max) | Power Dissipation (Max) | Mounting Type | FET Type | Operating Temperature [Min] | Operating Temperature [Max] | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs [Max] | Drive Voltage (Max Rds On, Min Rds On) | Current - Continuous Drain (Id) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

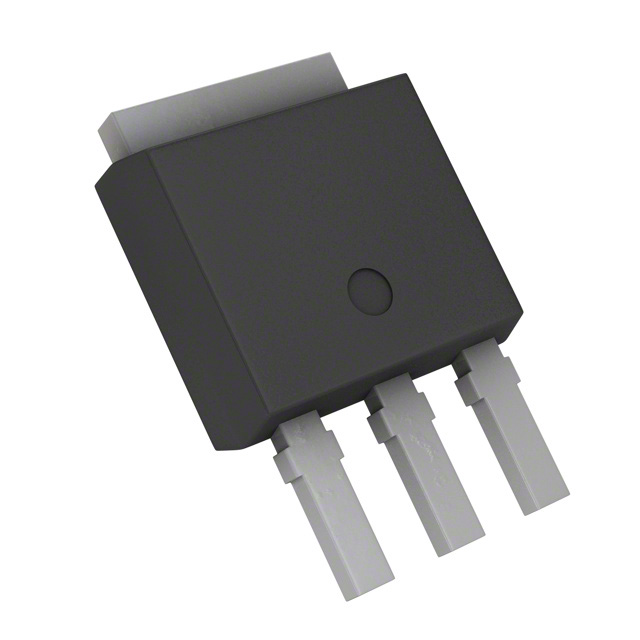

 ON Semiconductor | 13.9 mOhm | MOSFET (Metal Oxide) | 16 V | 702 pF | TO-251-3 Stub Leads IPAK | IPAK | 16 V | 1.2 W 25.9 W | Through Hole | N-Channel | -55 °C | 175 ░C | 2.5 V | 10.5 nC | 4.5 V 10 V | 7.6 A 34.5 A |
