PG20L Series

Catalog

20MM DIAMETER PM STEP MOTOR W1:6

Part	Type	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	Step Angle	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Mounting Hole Spacing [custom]	Mounting Hole Spacing [custom]	Steps per Revolution	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Voltage - Rated	Coil Type	Termination Style	Current Rating (Amps)
NMB TECHNOLOGIES PG20L-K20-HHF1	Permanent Magnet Gear Motor	Flatted Shaft	0.787 "	20 mm	0.198 °	0.157 in	4 mm	25 mm	0.984 in	1818	10 mm	0.394 "	10 V	Bipolar	Wire Leads	350 mA

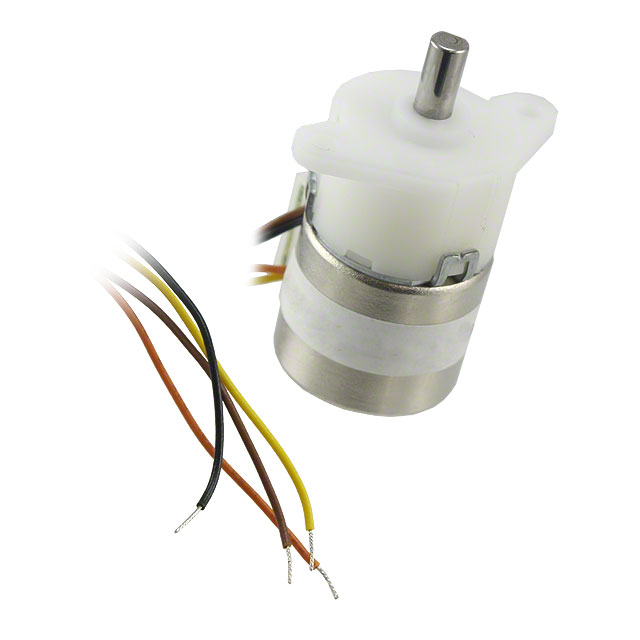

NMB TECHNOLOGIES PG20L-D20-HHC0	Permanent Magnet Gear Motor	Flatted Shaft	0.787 "	20 mm	0.198 °	0.157 in	4 mm	25 mm	0.984 in	1818	10 mm	0.394 "	10 V	Bipolar	Wire Leads	350 mA
