624-25 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

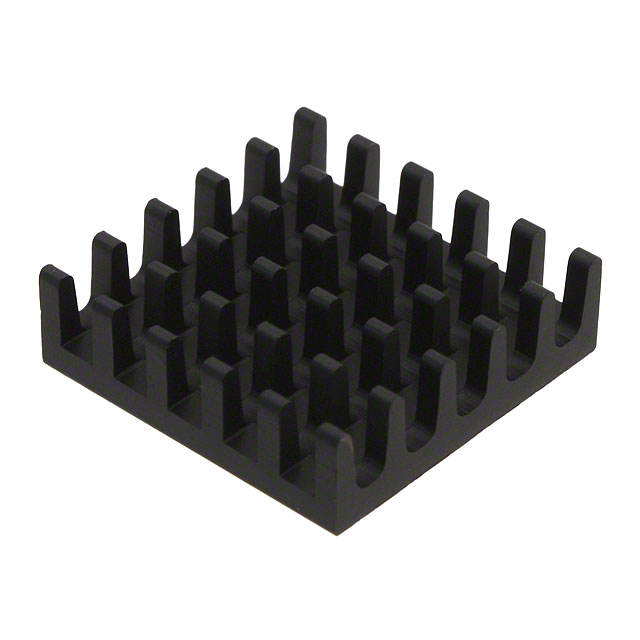

HEAT SINK, SQUARE, BLACK ANODIZED, FOR BALL GRID ARRAYS, PENGUIN COOLER, PIN FIN, BGA, 21 MM

Part	Material Finish	Fin Height	Fin Height	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Width [x]	Width [x]	Material	Type	Attachment Method	Shape	Package Cooled
Wakefield Thermal Solutions 624-25ABT3	Black Anodized	6.35 mm	0.25 in	25 °C/W	0.827 in	21 mm	0.827 in	21 mm	Aluminum	Top Mount	Thermal Tape Adhesive (Included)	Pin Fins Square	BGA
Wakefield Thermal Solutions 624-25ABT4E	Black Anodized	6.35 mm	0.25 in	25 °C/W	0.827 in	21 mm	0.827 in	21 mm	Aluminum	Top Mount	Thermal Tape Adhesive (Included)	Pin Fins Square	BGA
Wakefield Thermal Solutions 624-25ABT1E	Black Anodized	6.35 mm	0.25 in	25 °C/W	0.827 in	21 mm	0.827 in	21 mm	Aluminum	Top Mount	Thermal Tape Adhesive (Included)	Pin Fins Square	BGA
Wakefield Thermal Solutions 624-25AB	Black Anodized	6.35 mm	0.25 in	25 °C/W	0.827 in	21 mm	0.827 in	21 mm	Aluminum	Top Mount	Thermal Tape Adhesive	Pin Fins Square	BGA
Wakefield Thermal Solutions 624-25AB	Black Anodized	6.35 mm	0.25 in	25 °C/W	0.827 in	21 mm	0.827 in	21 mm	Aluminum	Top Mount	Thermal Tape Adhesive	Pin Fins Square	BGA
Wakefield Thermal Solutions 624-25ABT4E	Black Anodized	6.35 mm	0.25 in	25 °C/W	0.827 in	21 mm	0.827 in	21 mm	Aluminum	Top Mount	Thermal Tape Adhesive (Included)	Pin Fins Square	BGA
Wakefield Thermal Solutions 624-25ABT5	Black Anodized	6.35 mm	0.25 in	25 °C/W	0.827 in	21 mm	0.827 in	21 mm	Aluminum	Top Mount	Thermal Tape Adhesive (Included)	Pin Fins Square	BGA
Wakefield Thermal Solutions 624-25ABT3	Black Anodized	6.35 mm	0.25 in	25 °C/W	0.827 in	21 mm	0.827 in	21 mm	Aluminum	Top Mount	Thermal Tape Adhesive (Included)	Pin Fins Square	BGA
Wakefield Thermal Solutions 624-25ABT1E	Black Anodized	6.35 mm	0.25 in	25 °C/W	0.827 in	21 mm	0.827 in	21 mm	Aluminum	Top Mount	Thermal Tape Adhesive (Included)	Pin Fins Square	BGA
Wakefield Thermal Solutions 624-25ABT5	Black Anodized	6.35 mm	0.25 in	25 °C/W	0.827 in	21 mm	0.827 in	21 mm	Aluminum	Top Mount	Thermal Tape Adhesive (Included)	Pin Fins Square	BGA
