FX26 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS HEADER, 30POS., GOLD, 0.5A, 125V(DC), 140? HEAT AND VIBRATION RESISTANT BOARD-TO-BOARD FLOATING CONNECTOR

Part	Pitch	Pitch	Contact Finish	Features	Number of Rows [custom]	Mounting Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type
Hirose Electric Co Ltd FX26-30P-1SV	1 mm	0.039 in	Gold	Board Guide Solder Retention	2	Surface Mount	15 mm 18 mm 20 mm	10.16 mm	0.4 in	3.94 µin	0.1 Ám	30	Plug Floating
Hirose Electric Co Ltd FX26-60P-1SV	1 mm	0.039 in	Gold	Board Guide Solder Retention	2	Surface Mount	15 mm 18 mm 20 mm	10.16 mm	0.4 in	3.94 µin	0.1 Ám	60	Plug Floating

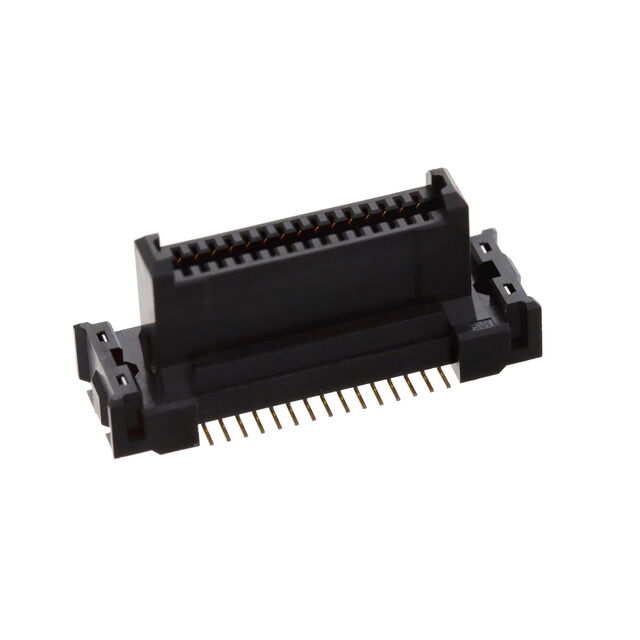

Hirose Electric Co Ltd FX26-30S-1SV15	1 mm	0.039 in	Gold	Board Guide Solder Retention	2	Surface Mount	15 mm	11.7 mm	0.461 in	3.94 µin	0.1 Ám	30	Receptacle Floating
Hirose Electric Co Ltd FX26-50P-1SV	1 mm	0.039 in	Gold	Board Guide Solder Retention	2	Surface Mount	15 mm 18 mm 20 mm	10.16 mm	0.4 in	3.94 µin	0.1 Ám	50	Plug Floating

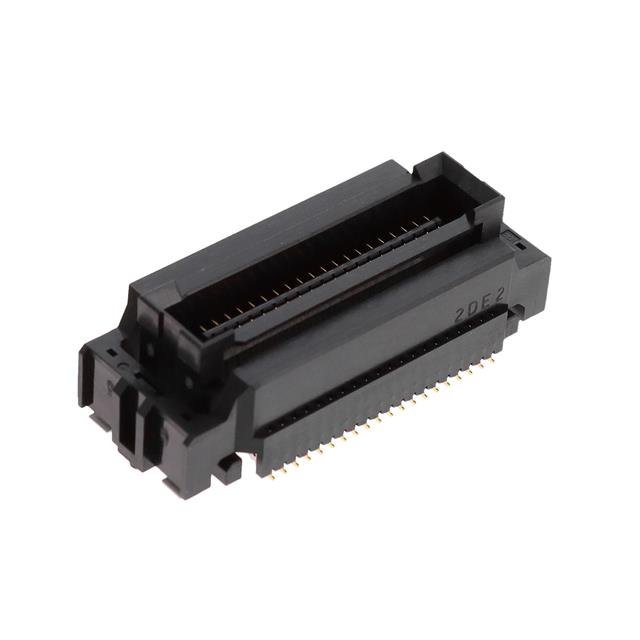

Hirose Electric Co Ltd FX26-40P-1SV	1 mm	0.039 in	Gold	Board Guide Solder Retention	2	Surface Mount	15 mm 18 mm 20 mm	10.16 mm	0.4 in	3.94 µin	0.1 Ám	40	Plug Floating
