E2043S Series
Manufacturer: Prysmian Group
Beta
⌘K

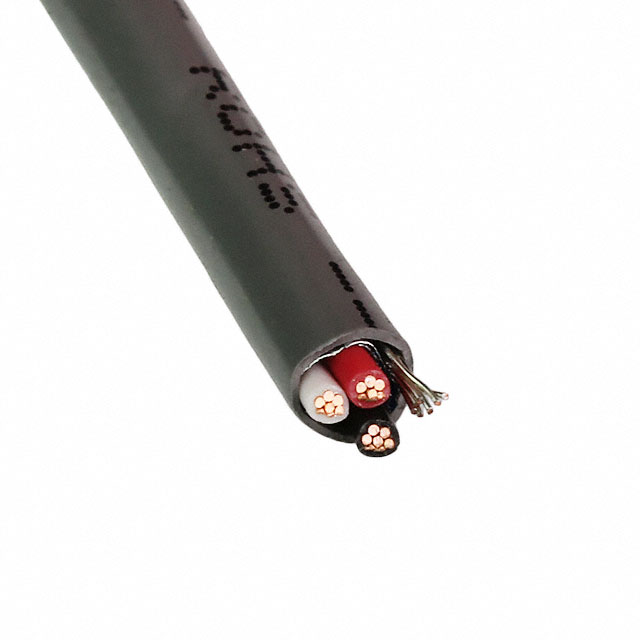

CABLE 3CON 16AWG GRAY SHLD 1000'
| Part | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket Color | Usage | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Cable Type | Voltage | Wire Gauge | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [diameter] | Length [x] | Length [x] | Features | Number of Conductors | Shield Type | Conductor Material | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 5.03 mm | 0.198 in | Poly-Vinyl Chloride (PVC) | Gray | Alarm Security Sound | 0.381 mm | 0.015 in | Multi-Conductor | 300 VDC | 16 AWG | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | 100 ft | 30.5 m | Drain Wire Rip Cord | 3 | Foil | Copper Bare | ||
Prysmian Group | 152.4 m 304.8 m | 500 ft 1000 ft | 5.03 mm | 0.198 in | Poly-Vinyl Chloride (PVC) | Gray | Alarm Security Sound | 0.381 mm | 0.015 in | Multi-Conductor | 300 VDC | 16 AWG | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | 100 ft | 30.5 m | Drain Wire Rip Cord | 3 | Foil | Copper Bare | 100 % | Flexfoil® |
