C0755 Series
Manufacturer: Prysmian Group
Beta
⌘K

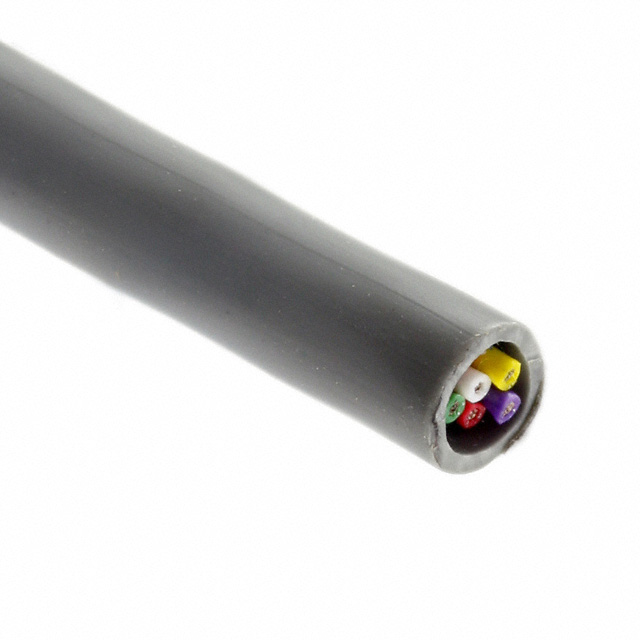

CABLE 9COND 24AWG GRAY SHLD 50'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Number of Conductors | Length | Length | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Jacket Color | Conductor Insulation | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Shield Material | Shield Coverage | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 7 | 32 AWG | 24 AWG | 9 | 15.24 m 304.8 m | 50 ft 1000 ft | Copper Tinned | 0.813 mm | 0.032 in | 300 VDC | Gray | Poly-Vinyl Chloride (PVC) | Foil | 80 °C 105 ░C | -20 ░C | Drain Wire | Computer | 5.79 mm | 0.228 in | Poly-Vinyl Chloride (PVC) | Flexfoil® | 100 % | Multi-Conductor | ||
Prysmian Group | 7 | 32 AWG | 24 AWG | 9 | 15.24 m 304.8 m | 50 ft 1000 ft | Copper Tinned | 0.813 mm | 0.032 in | 300 VDC | Gray | Poly-Vinyl Chloride (PVC) | Foil | 105 ░C | -20 ░C | Drain Wire | Computer | 5.79 mm | 0.228 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 100 ft | 30.5 m | ||
Prysmian Group | 7 | 32 AWG | 24 AWG | 9 | 152.4 m | 500 ft | Copper Tinned | 0.813 mm | 0.032 in | 300 VDC | Gray | Poly-Vinyl Chloride (PVC) | Foil | 105 ░C | -20 ░C | Drain Wire | Computer | 5.79 mm | 0.228 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | ||||
Prysmian Group | 7 | 32 AWG | 24 AWG | 9 | 152.4 m | 500 ft | Copper Tinned | 0.813 mm | 0.032 in | 300 VDC | Gray | Poly-Vinyl Chloride (PVC) | Foil | 80 °C | -20 ░C | Drain Wire | Computer | 5.79 mm | 0.228 in | Poly-Vinyl Chloride (PVC) | Flexfoil® | 100 % | Multi-Conductor |
