A4B-10PA Series

Catalog

CONN HEADER

Part	Insulation Height [z]	Insulation Height [z]	Mounting Type	Insulation Color	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Fastening Type	Voltage Rating	Shrouding	Style	Number of Rows	Contact Length - Mating	Contact Length - Mating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Material	Contact Material	Contact Shape	Number of Positions Loaded	Number of Positions	Connector Type	Material Flammability Rating	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish - Post	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Contact Finish Thickness - Mating

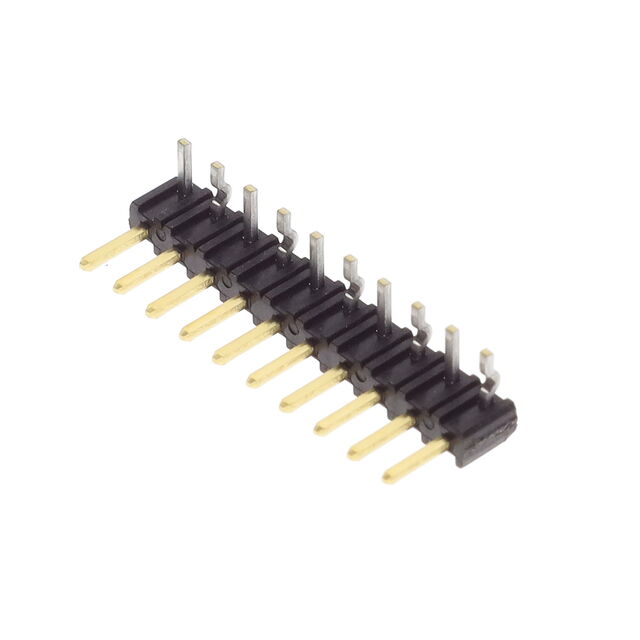

Hirose Electric Co Ltd A4B-10PA-2DS(51)	2 mm	0.079 in	Right Angle Through Hole	Black	Gold	0.079 "	2 mm	2.6 mm	0.102 in	Push-Pull	200 VAC	Unshrouded	Board to Board Cable	1	3.5 mm	0.138 in	Kinked Pin Solder	-55 C	85 °C	Male Pin	Nylon Polyamide (PA)	Brass	Square	All	10	Header	UL94 V-0
Hirose Electric Co Ltd A4B-10PA-2DSA(71)			Through Hole	Black	Gold	0.079 "	2 mm	2.6 mm	0.102 in	Push-Pull	200 V	Unshrouded	Board to Board Cable	1	3.5 mm	0.138 in	Solder	-55 C	85 °C	Male Pin	Nylon Polyamide (PA)	Brass	Square	All	10	Header	UL94 V-0	78.7 µin	2 µm	Tin	2 A	7.9 mm	0.311 in	1.8 mm	0.071 in	Flash
Hirose Electric Co Ltd A4B-10PA-2DSA(51)			Through Hole	Black	Gold	0.079 "	2 mm	2.6 mm	0.102 in	Push-Pull	200 VAC	Unshrouded	Board to Board Cable	1	3.5 mm	0.138 in	Solder	-55 C	85 °C	Male Pin	Nylon Polyamide (PA)	Brass	Square	All	10	Header	UL94 V-0					7.9 mm	0.311 in	1.8 mm	0.071 in
