293654 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

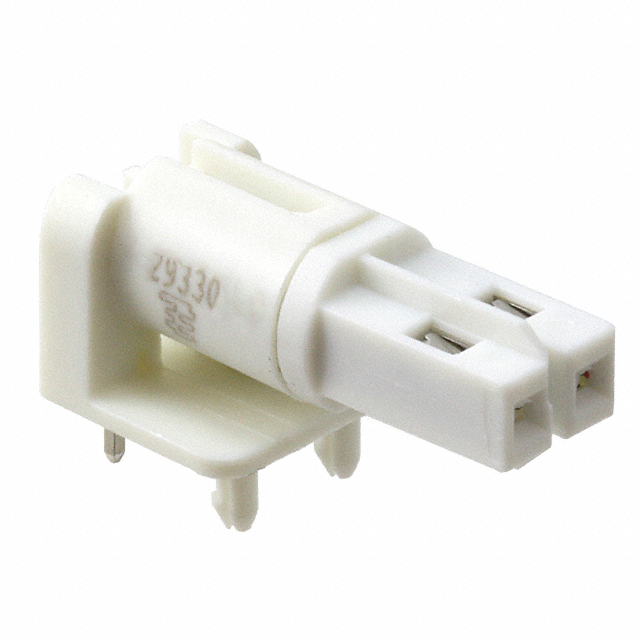

NECTOR S-LINE PCB ASSY 90DEG. REC.
| Part | Housing Material | Housing Color | Contact Finish | Voltage Rating | Current Rating (Amps) | Contact Material | Termination | Style | Pitch [x] | Pitch [x] | Features | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Polybutylene Terephthalate (PBT) Glass Filled | White | Tin | 125 VDC | 6 A | Copper Alloy | Solder | Board to Cable/Wire | 0.146 in | 3.7 mm | Board Lock Keying HV-4 | 2 | -40 °C | 120 °C | Through Hole Right Angle | Female Sockets Plug |
