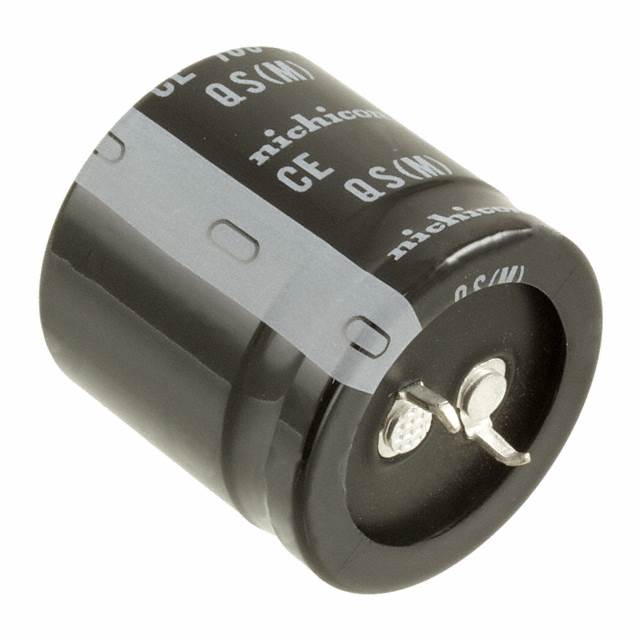

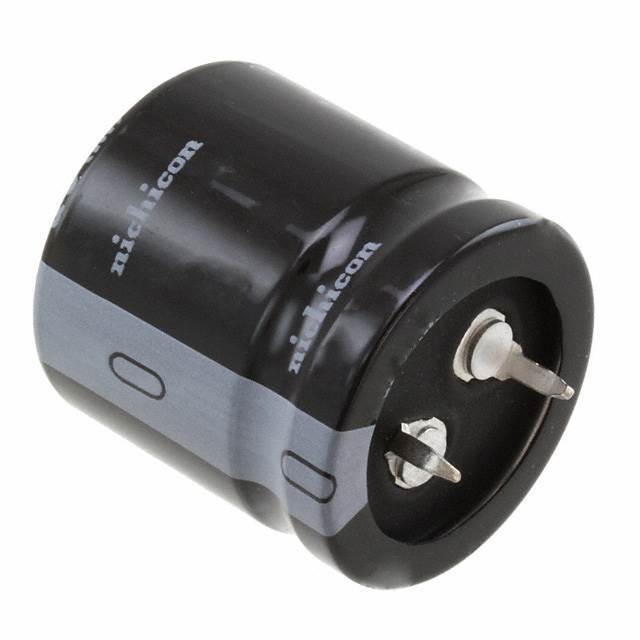

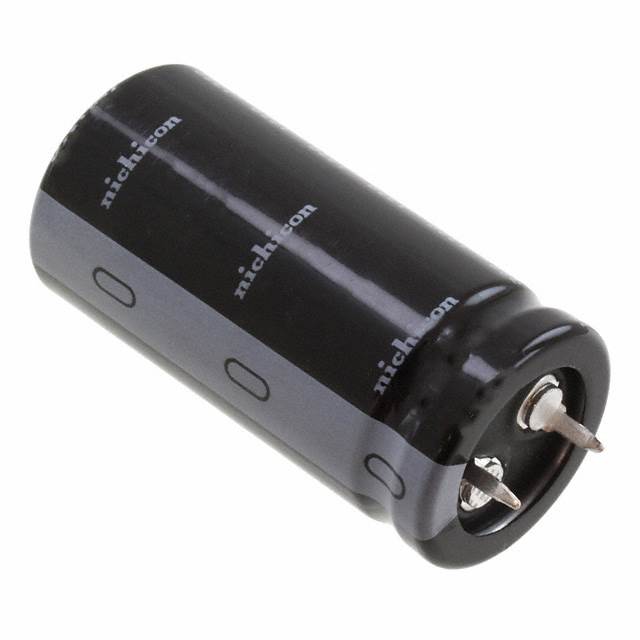

LQS Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 150UF 400 VOLTS 0.2

Part	Capacitance	Ripple Current @ High Frequency	Mounting Type	Ripple Current @ Low Frequency	Polarization	Voltage - Rated	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Tolerance	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension	Height - Seated (Max) [Max] [z]
Nichicon LQS2G151MELZ35	150 µF	1.2155 A	Through Hole	850 mA	Polar	400 V	General Purpose	0.866 "	22 mm	0.394 in	10 mm	3000 Hrs	105 ░C	-25 °C	Radial Can - Snap-In	20 %	37 mm	1.457 in
Nichicon LQSW6221MELZ45	220 µF		Through Hole	1.05 A	Polar	420 V	General Purpose	0.866 "	22 mm	0.394 in	10 mm	3000 Hrs	105 ░C	-25 °C	Radial Can - Snap-In	20 %			1.85 in	47 mm
Nichicon LQS2V181MELA25	180 µF	1.287 A	Through Hole	900 mA	Polar	350 V	General Purpose	0.984 "	25 mm	0.394 in	10 mm	3000 Hrs	105 ░C	-25 °C	Radial Can - Snap-In	20 %			1.063 in	27 mm
Nichicon LQS2V331MELB30	330 µF	1.716 A	Through Hole	1.2 A	Polar	350 V	General Purpose	1.181 "		0.394 in	10 mm	3000 Hrs	105 ░C	-25 °C	Radial Can - Snap-In	20 %		1.26 in			30 mm	32 mm
Nichicon LQS2G471MELC35	470 µF	2.002 A	Through Hole	1.68 A	Polar	400 V	General Purpose	1.378 "	35 mm	0.394 in	10 mm	3000 Hrs	105 ░C	-25 °C	Radial Can - Snap-In	20 %	37 mm	1.457 in
