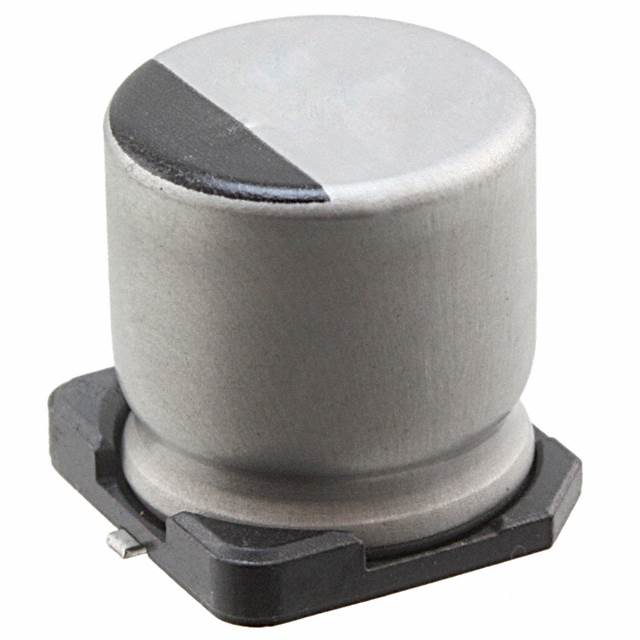

ULH Series

Manufacturer: Nichicon

Catalog

CAP ALUMINUM LYTIC 12UF 250V 20% (10 X 10MM) SMD 0.045A 4000H 125°C T/R AUTOMOTIVE AEC-Q200

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Package / Case	Mounting Type	Applications	Voltage - Rated	Capacitance	Lifetime @ Temp.	Polarization	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ High Frequency
Nichicon ULH2E120MNL1GS	11 mm	0.433 in	45 mA	0.394 in	10 mm	20 %	Radial Can - SMD	Surface Mount	General Purpose	250 V	12 µF	4000 Hrs	Polar	AEC-Q200	125 °C	-40 C	0.406 "	0.406 in	10.3 mm	10.3 mm
Nichicon ULH2D150MNL1GS			60 mA	0.394 in	10 mm	20 %	Radial Can - SMD	Surface Mount	General Purpose	200 VDC	15 µF	4000 Hrs	Polar	AEC-Q200	125 °C	-40 C	0.406 "	0.406 in	10.3 mm	10.3 mm	10.3 mm	0.406 in	90 mA
