LCWMVSG Series

Catalog

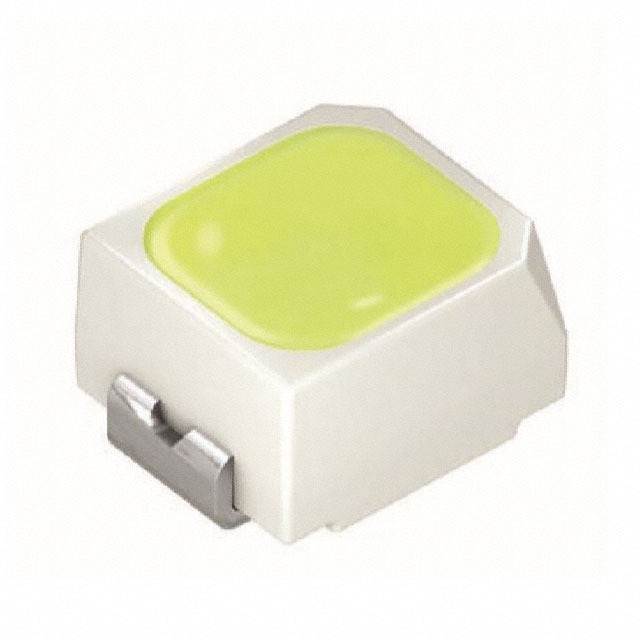

LED MINITOPLED

Part	Thermal Resistance of Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Color	Package / Case	Current - Test	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package	Mounting Type	Viewing Angle	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	CCT (K)
ams-OSRAM USA INC. LCW MVSG.EC-BXCX-4O9Q-1-20-R18-Z	130 °C/W	0.055 in	1.4 mm	White	2-SMD J-Lead	20 mA	82	1.8 mm	0.071 in	0.079 in	2 mm	SMD	Surface Mount	120 °	30 mA	3.05 V
ams-OSRAM USA INC. LCW MVSG.EC-BXCX-4C8E-1-20-R18	130 °C/W	0.055 in	1.4 mm	Cool White	2-SMD J-Lead	20 mA	82	1.8 mm	0.071 in	0.079 in	2 mm	SMD	Surface Mount	120 °	30 mA	3.05 V	131 lm/W	6 lm	8 lm	9 lm	6500 K
ams-OSRAM USA INC. LCW MVSG.EC-BXCX-4L8N-1-20-R18	130 °C/W	0.055 in	1.4 mm	Neutral White	2-SMD J-Lead	20 mA	82	1.8 mm	0.071 in	0.079 in	2 mm	SMD	Surface Mount	120 °	30 mA	3.05 V	131 lm/W	6 lm	8 lm	9 lm	4000 K
ams-OSRAM USA INC. LCW MVSG.EC-AZBZ-4U9X-1-20-R18	130 °C/W	0.055 in	1.4 mm	Warm White	2-SMD J-Lead	20 mA	82	1.8 mm	0.071 in	0.079 in	2 mm	SMD	Surface Mount	120 °	30 mA	3.05 V	98 lm/W	5 lm		8 lm	2700 K
ams-OSRAM USA INC. LCW MVSG.EC-AZBZ-4R9T-1-20-R18	130 °C/W	0.055 in	1.4 mm	Warm White	2-SMD J-Lead	20 mA	82	1.8 mm	0.071 in	0.079 in	2 mm	SMD	Surface Mount	120 °	30 mA	3.05 V	98 lm/W	5 lm		8 lm	3000 K
ams-OSRAM USA INC. LCW MVSG.EC-BXCX-4J8K-1-20-R18	130 °C/W	0.055 in	1.4 mm	Neutral White	2-SMD J-Lead	20 mA	82	1.8 mm	0.071 in	0.079 in	2 mm	SMD	Surface Mount	120 °	30 mA	3.05 V	131 lm/W	6 lm	8 lm	9 lm
ams-OSRAM USA INC. LCW MVSG.EC-BXCX-4F8G-1-20-R18	130 °C/W	0.055 in	1.4 mm	Cool White	2-SMD J-Lead	20 mA	82	1.8 mm	0.071 in	0.079 in	2 mm	SMD	Surface Mount	120 °	30 mA	3.05 V	131 lm/W	6 lm	8 lm	9 lm	5700 K
