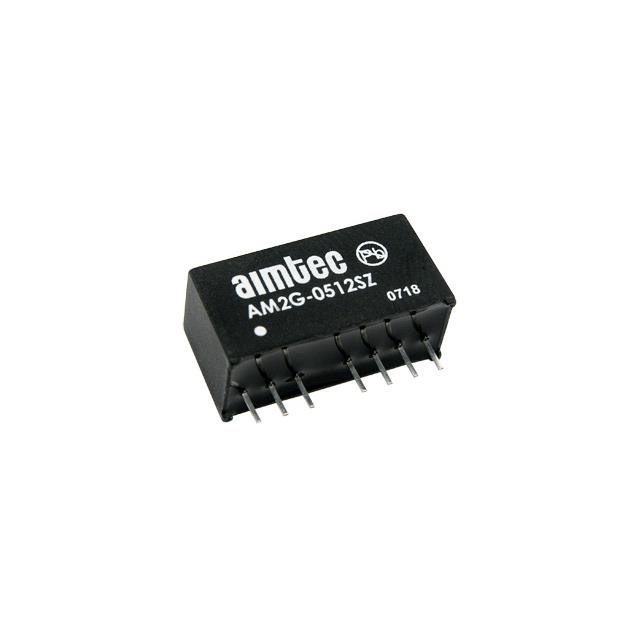

AM2G Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER +/-9V 2W

Part	Approval Agency	Mounting Type	Voltage - Input (Min) [Min]	Type	Standard Number	Current - Output (Max)	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Output 1	Voltage - Output 2	Power (Watts)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Applications	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Features	Current - Output (Max)
aimtec AM2G-0509DZ	CE CE cURus cURus EN IEC UL	Through Hole	4.5 V	Isolated Module	62368-1	111 mA	74 %	9.2 mm	0.36 in	0.86 "	21.9 mm	11.2 mm	0.44 in	9 V	-9 V	2 W	8-SIP Module 7 Leads	85 °C	-40 C	2	ITE (Commercial)	9 V	1000 V

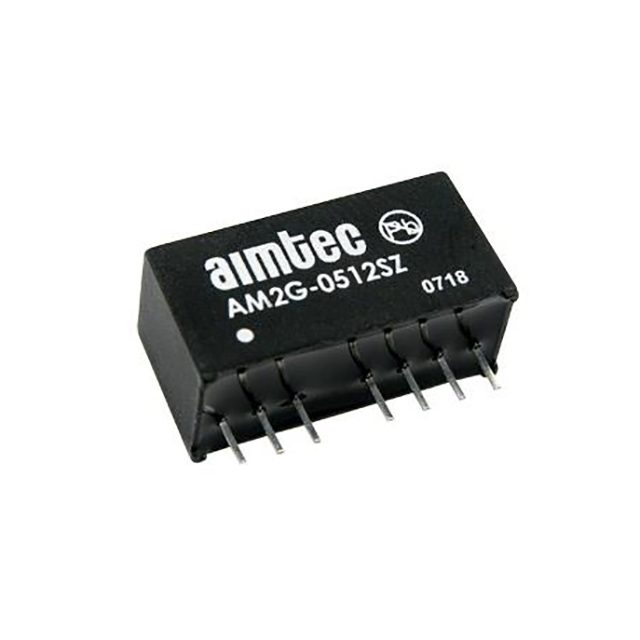

aimtec AM2G-1205SH30Z	CE CE cURus cURus EN IEC UL	Through Hole	9 V	Isolated Module	62368-1		77 %	9.2 mm	0.36 in	0.86 "	21.9 mm	11.2 mm	0.44 in	5 V		2 W	8-SIP Module 7 Leads	85 °C	-40 C	1	ITE (Commercial)	18 V	3000 V	400 mA
aimtec AM2G-0505SZ	CE CE cURus cURus EN IEC UL	Through Hole	4.5 V	Isolated Module	62368-1		70 %	9.2 mm	0.36 in	0.86 "	21.9 mm	11.2 mm	0.44 in	5 V		2 W	8-SIP Module 7 Leads	85 °C	-40 C	1	ITE (Commercial)	9 V	1000 V	400 mA
aimtec AM2G-0515DZ	CE cURus EN IEC UL	Through Hole	4.5 V	Isolated Module	62368-1	67 mA	75 %	9.2 mm	0.36 in	0.86 "	21.9 mm	11.2 mm	0.44 in		-15 V	2 W	8-SIP Module	85 °C	-40 C	2	ITE (Commercial)	9 V	1000 V		15 V	-15 V	Remote On/Off	67 mA
aimtec AM2G-0512SZ	CE cURus EN IEC UL	Through Hole	4.5 V	Isolated Module	62368-1		72 %	9.2 mm	0.36 in	0.86 "	21.9 mm	11.2 mm	0.44 in	12 V		2 W	8-SIP Module	85 °C	-40 C	1	ITE (Commercial)	9 V	1000 V	167 mA			Remote On/Off
aimtec AM2G-4805SH30Z	CE cURus EN IEC UL	Through Hole	36 V	Isolated Module	62368-1		74 %	9.2 mm	0.36 in	0.86 "	21.9 mm	11.2 mm	0.44 in	5 V		2 W	8-SIP Module 7 Leads	85 °C	-40 C	1	ITE (Commercial)	72 V	3000 V	400 mA
aimtec AM2G-4815SH30Z	CE cURus EN IEC UL	Through Hole	36 V	Isolated Module	62368-1		78 %	9.2 mm	0.36 in	0.86 "	21.9 mm	11.1 mm	0.44 in	15 V		2 W	8-SIP Module	85 °C	-40 C	1	ITE (Commercial)	72 V	3000 V	133 mA			Remote On/Off
