LMV1099 Series

Dual input microphone preamp with far field noise suppression, SNR enhancement & earpiece driver

Catalog

Dual input microphone preamp with far field noise suppression, SNR enhancement & earpiece driver

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Mounting Type	Features	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Max Output Power x Channels @ Load	Output Type	Package / Case

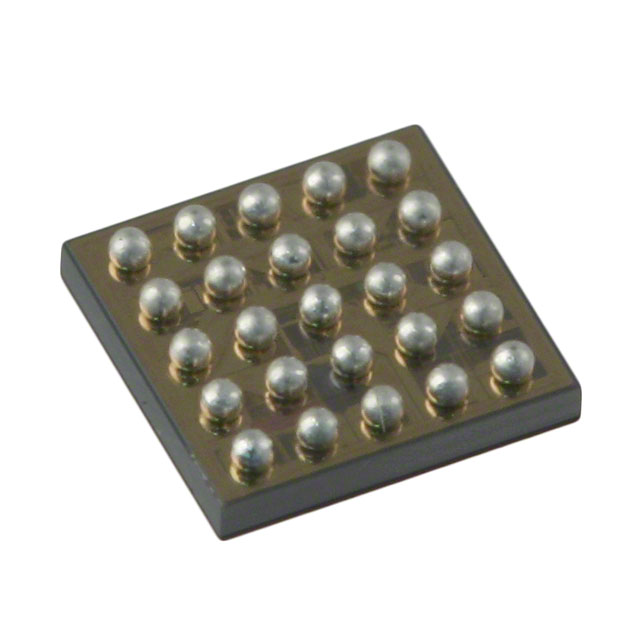

Texas Instruments LMV1099TLX/NOPB	2.7 V	5.5 V	Class AB	Surface Mount	Differential Inputs I2C Microphone Mute Shutdown	25-uSMD	85 °C	-40 °C	1 83 mW	1-Channel (Mono)	25-WFBGA
Texas Instruments LMV1099TL/NOPB	2.7 V	5.5 V	Class AB	Surface Mount	Differential Inputs I2C Microphone Mute Shutdown	25-uSMD	85 °C	-40 °C	1 83 mW	1-Channel (Mono)	25-WFBGA

Catalog

Dual input microphone preamp with far field noise suppression, SNR enhancement & earpiece driver

Key Features

• Noise Reduction Without DSP-Type ArtifactsAdapting AGC (Automatic Gain Control) on Ambient Noise Level and Downlink Signal StrengthDownlink Adjustable Noise-reducing High Pass FilterSeparate Uplink and Downlink Enable FunctionsNo Added Process DelaysLow Power ConsumptionShutdown FunctionMaximum AGC LimiterDifferential Inputs and Outputs for Noise ImmunityEarpiece AmplifierAvailable in a 25-Bump DSBGA PackageKey SpecificationsUplink Far Field Noise Suppression (Electrical FFNSEat f = 1kHz) 33dB (typ)Near-Field SNR Enhancement 6 to 18dB (typ)Downlink SNRIE16dB (typ)Supply Voltage Range 2.7V to 5.5VSupply Current (VDD= 3.6V) 3.8mA (typ)Shutdown Current 0.06μA (typ)Uplink PSRR (f = 217Hz) 106dB (typ)Downlink SNR (A-weighted) 102dB (typ)Downlink THD+N 0.03% (typ)Earpiece Output Power (RL= 32Ω) 83mW (typ)All trademarks are the property of their respective owners.Noise Reduction Without DSP-Type ArtifactsAdapting AGC (Automatic Gain Control) on Ambient Noise Level and Downlink Signal StrengthDownlink Adjustable Noise-reducing High Pass FilterSeparate Uplink and Downlink Enable FunctionsNo Added Process DelaysLow Power ConsumptionShutdown FunctionMaximum AGC LimiterDifferential Inputs and Outputs for Noise ImmunityEarpiece AmplifierAvailable in a 25-Bump DSBGA PackageKey SpecificationsUplink Far Field Noise Suppression (Electrical FFNSEat f = 1kHz) 33dB (typ)Near-Field SNR Enhancement 6 to 18dB (typ)Downlink SNRIE16dB (typ)Supply Voltage Range 2.7V to 5.5VSupply Current (VDD= 3.6V) 3.8mA (typ)Shutdown Current 0.06μA (typ)Uplink PSRR (f = 217Hz) 106dB (typ)Downlink SNR (A-weighted) 102dB (typ)Downlink THD+N 0.03% (typ)Earpiece Output Power (RL= 32Ω) 83mW (typ)All trademarks are the property of their respective owners.

Description

The LMV1099 is an uplink and downlink voice intelligibility enhancing analog IC, ideally suited for mobile handsets. Uplink voice intelligibility is improved by rejecting far-field noise through a unique two-microphone solution. Downlink voice intelligibility is improved by enhancing the SNR (Signal-to-Noise Ratio) between the downlink voice and the ambient noise environment at the user’s earpiece. The LMV1099 preserves uplink near-field voice signals within close range of the microphones while rejecting far-field acoustic noise greater than 0.5m from the microphones. The LMV1099 also enhances downlink voice intelligibility by improving near-field SNR based on the user’s environment. The analog circuitry adapts dynamically to both the user’s ambient noise environment as well as the downlink signal amplitude to ensure optimum SNRI (signal-to-noise ratio improvement). The downlink path also provides uplink noise attenuation through an adjustable high pass filter before the SNR enhanced downlink voice reaches the user’s earpiece. Unlike digital-based noise reduction solutions, the all-analog low power consuming LMV1099 increases both uplink and downlink voice intelligibility without DSP-type artifacts, distortions or processing delays. The LMV1099 is an uplink and downlink voice intelligibility enhancing analog IC, ideally suited for mobile handsets. Uplink voice intelligibility is improved by rejecting far-field noise through a unique two-microphone solution. Downlink voice intelligibility is improved by enhancing the SNR (Signal-to-Noise Ratio) between the downlink voice and the ambient noise environment at the user’s earpiece. The LMV1099 preserves uplink near-field voice signals within close range of the microphones while rejecting far-field acoustic noise greater than 0.5m from the microphones. The LMV1099 also enhances downlink voice intelligibility by improving near-field SNR based on the user’s environment. The analog circuitry adapts dynamically to both the user’s ambient noise environment as well as the downlink signal amplitude to ensure optimum SNRI (signal-to-noise ratio improvement). The downlink path also provides uplink noise attenuation through an adjustable high pass filter before the SNR enhanced downlink voice reaches the user’s earpiece. Unlike digital-based noise reduction solutions, the all-analog low power consuming LMV1099 increases both uplink and downlink voice intelligibility without DSP-type artifacts, distortions or processing delays.
