HIF4C Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

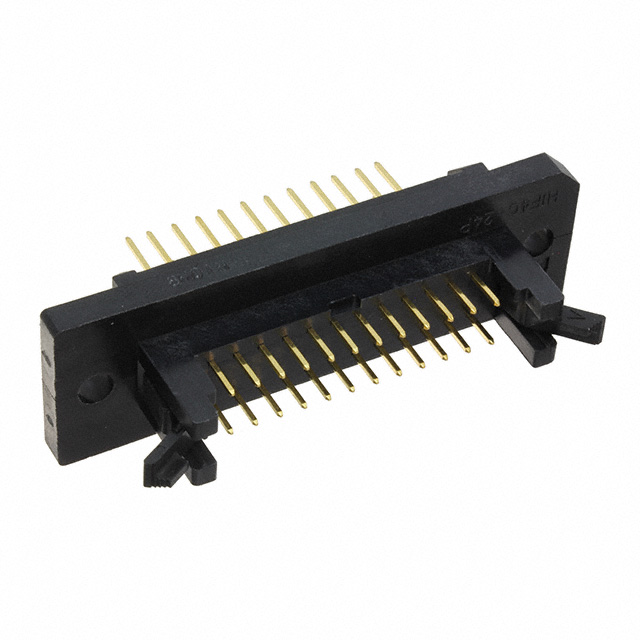

CONN HEADER R/A 24POS 3.18MM
| Part | Shrouding | Contact Material | Insulation Material | Fastening Type | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Mating | Contact Length - Mating | Contact Shape | Contact Type | Number of Positions Loaded | Voltage Rating | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Style | Connector Type | Number of Rows [custom] | Contact Finish - Mating | Mounting Type | Insulation Color | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Shrouded - 4 Wall | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Latch Lock/Eject Hooks | 6.35 mm | 0.25 in | 0.22 in | 5.59 mm | Square | Male Pin | All | 300 VDC | 24 | -55 C | 85 °C | Wire Wrap | 0.76 Ám | 30 Áin | UL94 V-0 | Board to Cable/Wire | Header | 2 | Gold | Panel Mount Right Angle Through Hole | Black | 3 A |
