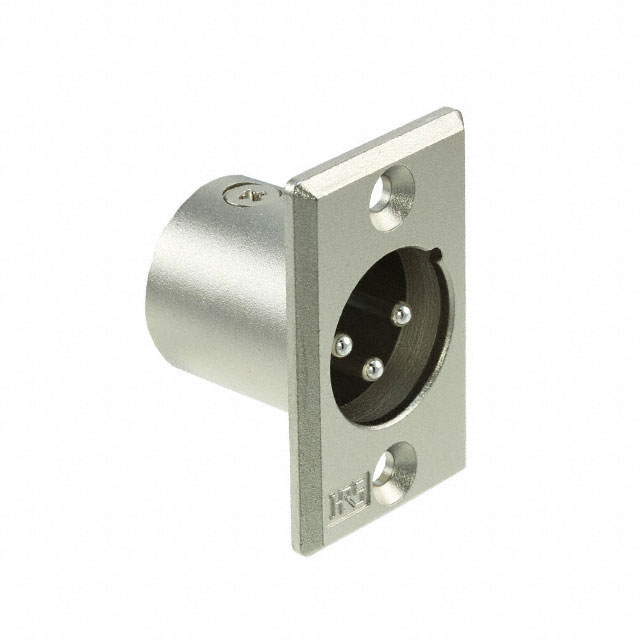

HA16R Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN CIRC PLUG 3 X 4P SOLDER CUP
| Part | Shell Finish | Shell Material | Current Rating (Amps) | Material Flammability Rating | Contact Finish - Mating | Shell Size - Insert | Mounting Feature | Voltage Rating | Mounting Type | Orientation | Connector Type | Primary Material | Number of Positions [x] | Number of Positions [y] | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Cable Opening | Cable Opening | Contact Material | Insert Material [custom] | Insert Material [custom] | Shielding | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | Nickel | Aluminum or Zinc Alloy | 3 A | UL94 V-0 | Silver | 16 | Flange | 130 VAC 180 VDC | Panel Mount | Keyed | Plug Female Sockets and Receptacle Male Pins (Ganged) | Metal | 3 | 4 | Latch Lock Push-Pull | -25 °C | 70 °C | ||||||||||
 Hirose Electric Co Ltd | Nickel | Aluminum Alloy | 15 A | UL94 V-0 | Silver | 16 | Flange | 130 VAC 180 VDC | Panel Mount | Keyed | Receptacle Male Pins | Metal | Push-Pull | -25 °C | 70 °C | 78.7 µin | 2 µm | 19 mm | 0.748 " | Brass | Nylon | Polyamide (PA) | Shielded | Ground | Silver |
