IKZ50N Series
Manufacturer: INFINEON
Beta
⌘K

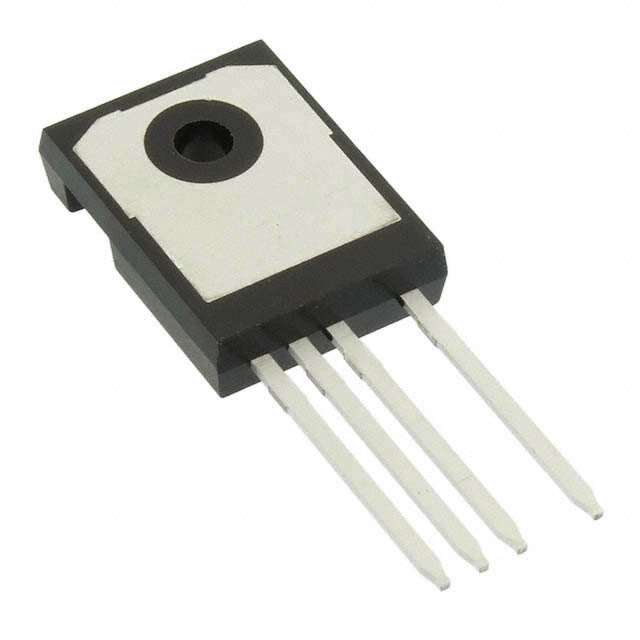

IGBT 650V 50A CO-PACK TO-247-4
| Part | Voltage - Collector Emitter Breakdown (Max) [Max] | Supplier Device Package | Td (on/off) @ 25°C | Mounting Type | Switching Energy | Package / Case | Gate Charge | Power - Max [Max] | Current - Collector (Ic) (Max) [Max] | Reverse Recovery Time (trr) | Test Condition | Vce(on) (Max) @ Vge, Ic | Current - Collector Pulsed (Icm) | Operating Temperature [Max] | Operating Temperature [Min] | IGBT Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 650 V | PG-TO247-4 | 22 ns 252 ns | Through Hole | 200 µJ 350 µJ | TO-247-4 | 109 nC | 273 W | 85 A | 46 ns | 15 Ohm 15 V 25 A 400 V | 2.1 V | 200 A | 175 °C | -40 °C | Trench |
