dsPIC30F2010 Series

Catalog

16-BIT, FLASH, 30 MHZ, RISC MICROCONTROLLER, PDSO28, 0.300 INCH, LEAD FREE, PLASTIC, SOIC-28

Part	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Package / Case	Package / Case [x]	Package / Case [y]	Connectivity	Data Converters [custom]	Data Converters [custom]	Speed	Mounting Type	RAM Size	Core Processor	Oscillator Type	Program Memory Size	Program Memory Type	Core Size	Supplier Device Package	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Peripherals	Package / Case	Package / Case
Microchip Technology DSPIC30F2010T-30I/SO	2.5 V	5.5 V	28-SOIC	0.295 in	7.5 mm	I2C SPI UART/USART	10 b	6	30 MIPs	Surface Mount	512	dsPIC	Internal	12 KB	FLASH	16-Bit	28-SOIC	20	85 °C	-40 °C	Brown-out Detect/Reset Motor Control PWM POR PWM QEI WDT
Microchip Technology DSPIC30F2010-20I/SO	2.5 V	5.5 V	28-SOIC	0.295 in	7.5 mm	I2C SPI UART/USART	10 b	6	20 MIPS	Surface Mount	512	dsPIC	Internal	12 KB	FLASH	16-Bit	28-SOIC	20	85 °C	-40 °C	Brown-out Detect/Reset Motor Control PWM POR PWM QEI WDT

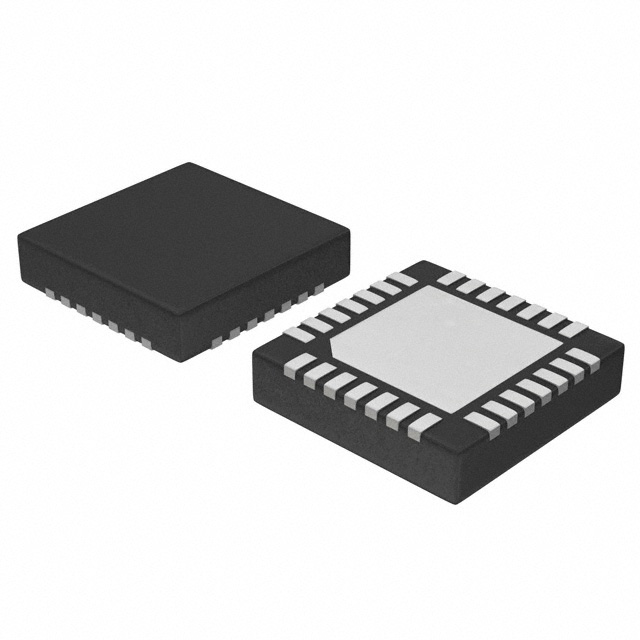

Microchip Technology DSPIC30F2010-20E/MM	2.5 V	5.5 V	28-VQFN Exposed Pad			I2C SPI UART/USART	10 b	6	20 MIPS	Surface Mount	512	dsPIC	Internal	12 KB	FLASH	16-Bit	28-QFN-S (6x6)	20	125 °C	-40 °C	Brown-out Detect/Reset Motor Control PWM POR PWM QEI WDT
Microchip Technology DSPIC30F2010T-20I/SOG	2.5 V	5.5 V	28-SOIC	0.295 in	7.5 mm	I2C SPI UART/USART	10 b	6	20 MIPS	Surface Mount	512	dsPIC	Internal	12 KB	FLASH	16-Bit	28-SOIC	20	85 °C	-40 °C	Brown-out Detect/Reset Motor Control PWM POR PWM QEI WDT

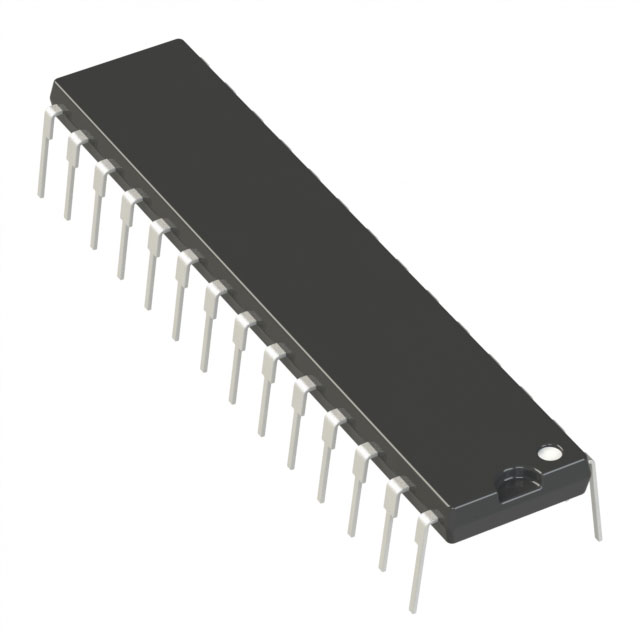

Microchip Technology DSPIC30F2010-20I/SP	2.5 V	5.5 V	28-DIP			I2C SPI UART/USART	10 b	6	20 MIPS	Through Hole	512	dsPIC	Internal	12 KB	FLASH	16-Bit	28-SPDIP	20	85 °C	-40 °C	Brown-out Detect/Reset Motor Control PWM POR PWM QEI WDT	0.3 in	7.62 mm
Microchip Technology DSPIC30F2010T-20E/MM	2.5 V	5.5 V	28-VQFN Exposed Pad			I2C SPI UART/USART	10 b	6	20 MIPS	Surface Mount	512	dsPIC	Internal	12 KB	FLASH	16-Bit	28-QFN-S (6x6)	20	125 °C	-40 °C	Brown-out Detect/Reset Motor Control PWM POR PWM QEI WDT
Microchip Technology DSPIC30F2010-20E/SO	2.5 V	5.5 V	28-SOIC	0.295 in	7.5 mm	I2C SPI UART/USART	10 b	6	20 MIPS	Surface Mount	512	dsPIC	Internal	12 KB	FLASH	16-Bit	28-SOIC	20	125 °C	-40 °C	Brown-out Detect/Reset Motor Control PWM POR PWM QEI WDT
Microchip Technology DSPIC30F2010-20E/SP	2.5 V	5.5 V	28-DIP			I2C SPI UART/USART	10 b	6	20 MIPS	Through Hole	512	dsPIC	Internal	12 KB	FLASH	16-Bit	28-SPDIP	20	125 °C	-40 °C	Brown-out Detect/Reset Motor Control PWM POR PWM QEI WDT	0.3 in	7.62 mm
Microchip Technology DSPIC30F2010T-20I/SO	2.5 V	5.5 V	28-SOIC	0.295 in	7.5 mm	I2C SPI UART/USART	10 b	6	20 MIPS	Surface Mount	512	dsPIC	Internal	12 KB	FLASH	16-Bit	28-SOIC	20	85 °C	-40 °C	Brown-out Detect/Reset Motor Control PWM POR PWM QEI WDT
Microchip Technology DSPIC30F2010T-20I/MM	2.5 V	5.5 V	28-VQFN Exposed Pad			I2C SPI UART/USART	10 b	6	20 MIPS	Surface Mount	512	dsPIC	Internal	12 KB	FLASH	16-Bit	28-QFN-S (6x6)	20	85 °C	-40 °C	Brown-out Detect/Reset Motor Control PWM POR PWM QEI WDT

Key Features

• High-Performance dsPIC30F core* Modified Harvard architecture

• * C compiler optimized instruction set architecture

• * 24-bit wide instructions, 16-bit wide data path

• * Up to 30 MIPS operation

• * DSP Engine for math intensive operations

• * Modulo and Bit-Reversed Addressing modes

• * Two 40-bit wide accumulators with optional saturation logic

• * 17-bit x 17-bit single cycle hardware fractional/ integer multiplier

• * Single cycle Multiply-Accumulate (MAC) operation

• * 40-stage Barrel Shifter

• * Dual data fetch

•

• Operating Conditions* Wide operating voltage range (2.5V to 5.5V)

• * Industrial and Extended temperature ranges

•

• Peripheral Features* High current sink/source I/O pins: 25 mA/25 mA

• * Optionally pair up 16-bit timers into 32-bit timer modules

• * 3-wire SPI™ modules (supports 4 Frame modes)

• * I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing

• * Addressable UART modules with FIFO buffers

•

• Motor Control PWM Module Features* Motor Control PWM Module with Complementary or Independent Output modes

• * Edge and Center Aligned modes

• * Multiple duty cycle generators

• * Dedicated time base with 4 modes

• * Programmable output polarity

• * Dead time control for Complementary mode

• * Manual output control

• * Trigger for synchronized A/D conversions

•

• Quadrature Encoder Interface Module Features* QEI with Phase A, Phase B and Index Pulse input

• * 16-bit up/down position counter

• * Count direction status

• * Position Measurement (x2 and x4) mode

• * Programmable digital noise filters on inputs

• * Alternate 16-bit Timer/Counter mode

• * Interrupt on position counter rollover/underflow

•

• Analog Features* 10-bit 1 Msps Analog-to-Digital Converter (A/D)

• * A/D Conversion available during Sleep and Idle

• * 4 Sample/Hold Channels

• * Multiple Conversion Sequencing Options

•

• Special Microcontroller Features* Enhanced Flash program memory with 10,000 erase/write cycle (min.) for industrial temperature range, 100K (typical)

• * Data EEPROM memory with 100,000 erase/write cycle (min.) for industrial temperature range, 1M (typical)

• * Self-reprogrammable under software control

• * Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

• * Flexible Watchdog Timer (WDT) with on-chip low power RC oscillator for reliable operation

• * Fail-Safe clock monitor operation

• * Detects clock failure and switches to on-chip low power RC oscillator

• * Programmable code protection

• * In-Circuit Serial Programming™ (ICSP™)

• * DC to 40 MHz external clock input

• * 4 MHz-10 MHz oscillator input with PLL active (4x, 8x, 16x)

• * Programmable Brown-out Detection and Reset generation

• * Sleep, Idle and Alternate Clock modes for power management

Description

dsPIC30F Motor Control 16-bit Digital Signal Controller. Seamless migration options from this device to dsPIC33F, PIC24H or PIC24F devices in similar packages.
