TMR 2 Series

Catalog

DC DC CONVERTER 24V 2W

Part	Efficiency	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Voltage - Input (Min) [Min]	Applications	Number of Outputs	Voltage - Isolation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Power (Watts)	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Traco Power TMR 2-0515WISM	84 %	Isolated Module	8.7 mm	0.75 in	0.34 in	0.59 in	19 mm	14.9 mm	24 V	4.5 V	ITE (Commercial)	1	1.5 kV	Remote On/Off SCP	80 ¯C	-40 °C	12 V	14-SMD Module 7 Leads	Surface Mount	2 W	83 mA
Traco Power TMR 2-1210WIN	75 %	Isolated Module	11.2 mm	0.86 "	0.44 in	0.37 in	21.8 mm	9.3 mm	3.3 V	4.5 V	ITE (Commercial)	1	1.5 kV	OCP Remote On/Off SCP	90 °C	-40 °C	18 V	8-SIP Module 7 Leads	Through Hole	1.7 W	500 mA

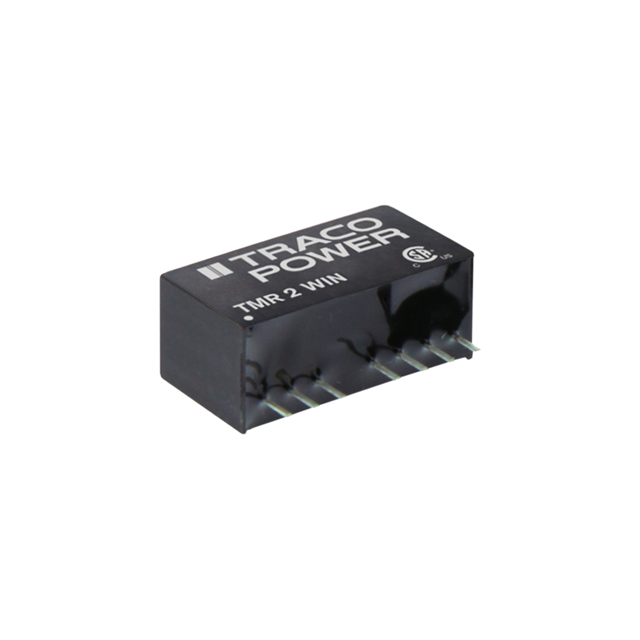

Traco Power TMR 2-2412WIN		Isolated Module	9.3 mm	0.86 "	0.37 in	0.44 "	21.8 mm	11.2 mm	12 V	9 V	ITE (Commercial)	1	1.5 kV	OCP Remote On/Off SCP	90 °C	-40 °C	36 V	8-SIP Module 7 Leads	Through Hole	2 W	167 mA
Traco Power TMR 2-0512WISM	84 %	Isolated Module	8.7 mm	0.75 in	0.34 in	0.59 in	19 mm	14.9 mm	12 V	4.5 V	ITE (Commercial)	1	1.5 kV	Remote On/Off SCP	80 ¯C	-40 °C	12 V	14-SMD Module 7 Leads	Surface Mount	2 W	167 mA
Traco Power TMR 2-2411E	77 %	Isolated Module	11.2 mm	0.86 "	0.44 in	0.37 in	21.8 mm	9.3 mm	5 V	18 V	ITE (Commercial)	1	1000 V	Remote On/Off SCP	85 °C	-40 °C	36 V	8-SIP Module 7 Leads	Through Hole	2 W	400 mA
Traco Power TMR 2-4812WI	78 %	Isolated Module	12.5 mm	1.02 "	0.49 "	0.37 in	26 mm	9.3 mm	12 V	18 V	ITE (Commercial)	1	1.5 kV	Remote On/Off SCP	85 °C	-40 °C	75 V	9-SIP Module 7 Leads	Through Hole	2 W	165 mA
Traco Power TMR 2-2412E	81 %	Isolated Module	11.2 mm	0.86 "	0.44 in	0.37 in	21.8 mm	9.3 mm	12 V	18 V	ITE (Commercial)	1	1000 V	Remote On/Off SCP	85 °C	-40 °C	36 V	8-SIP Module 7 Leads	Through Hole	2 W	167 mA
Traco Power TMR 2-2423WISM	83 %	Isolated Module	8.7 mm	0.75 in	0.34 in	0.59 in	19 mm	14.9 mm	15 V	9 V	ITE (Commercial)	2	1.5 kV	Remote On/Off SCP	80 ¯C	-40 °C	36 V	14-SMD Module 7 Leads	Surface Mount	2 W		67 mA	67 mA	-15 V
Traco Power TMR 2-4810WIN	74 %	Isolated Module	11.2 mm	0.86 "	0.44 in	0.37 in	21.8 mm	9.3 mm	3.3 V	18 V	ITE (Commercial)	1	1.5 kV	OCP Remote On/Off SCP	90 °C	-40 °C	75 V	8-SIP Module 7 Leads	Through Hole	1.7 W	500 mA
Traco Power TMR 4822	81 %	Isolated Module	11.1 mm	0.86 "	0.44 in	0.36 in	21.8 mm	9.2 mm	12 V	36 V	ITE (Commercial)	2	1.5 kV	Remote On/Off SCP	85 °C	-40 C	75 V	8-SIP Module 7 Leads	Through Hole	2 W		85 mA	85 mA	-12 V
