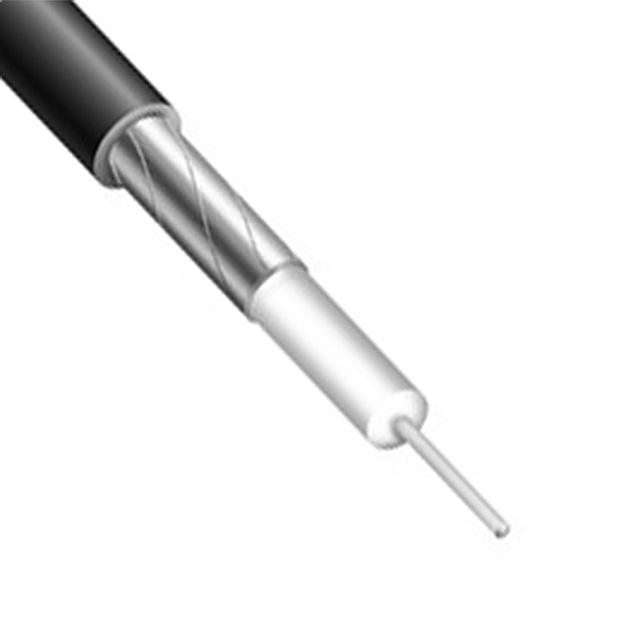

C5770 Series
Manufacturer: Prysmian Group
Beta
⌘K
CABLE COAXIAL RG-59 22AWG 1000'
| Part | Cable Type | Length | Length | Jacket (Insulation) Material | Length [x] | Length [x] | Usage | Shield Type | Wire Gauge | Impedance | Conductor Strand | Jacket Color | Cable Group | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | VoP, Velocity of Propagation | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Coaxial | 100 ' | 30.48 m | Poly-Vinyl Chloride (PVC) | 152.4 m 304.8 m | 500 ft 1000 ft | CATV | Braid Foil | 0.32 mm² 22 AWG | 80 Ohms | Solid | Black | RG-59 | 5.87 mm | 0.231 in | ||||||
Prysmian Group | Coaxial | 100 ' | 30.48 m | Poly-Vinyl Chloride (PVC) | 152.4 m 304.8 m | 500 ft 1000 ft | CATV | Braid Foil | 0.32 mm² 22 AWG | 80 Ohms | Solid | Black | RG-59 | 5.87 mm | 0.231 in | 78 | Aluminum Flexfoil® | 0.144 in | 3.66 mm | 40 % 100 % | Copper Coated Steel |
