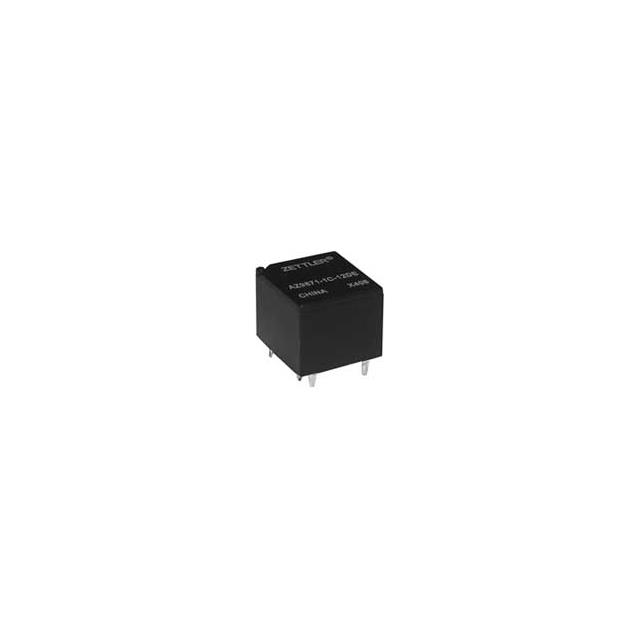

AZ9871 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY AUTOMOTIVE SPDT 25A 24V
| Part | Contact Material | Coil Resistance | Coil Power | Features | Coil Type | Contact Rating (Current) | Contact Form | Operate Time | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Termination Style | Switching Voltage [Max] | Coil Voltage | Must Operate Voltage | Must Release Voltage | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | Silver Tin Oxide (AgSnO) | 1.01 kOhms | 570 mW | Sealed - Epoxy | Non Latching | 25 A | SPDT (1 Form C) | 3 ms | 1.5 ms | -40 C | 105 ░C | 23.8 mA | PC Pin | 24 VDC | 24 VDC | 13.8 VDC | 3 VDC | Through Hole |
American Zettler | Silver Tin Oxide (AgSnO) | 254 Ohms | 567 mW | Sealed - Epoxy | Non Latching | 25 A | SPDT (1 Form C) | 3 ms | 1.5 ms | -40 C | 105 ░C | 47.2 mA | PC Pin | 24 VDC | 12 VDC | 6.9 VDC | 1.5 VDC | Through Hole |
American Zettler | Silver Tin Oxide (AgSnO) | 254 Ohms | 567 mW | Sealed - Epoxy | Non Latching | 30 A | DPST-NO (2 Form A) | 3 ms | 1.5 ms | -40 C | 105 ░C | 47.2 mA | PC Pin | 24 VDC | 12 VDC | 6.9 VDC | 1.5 VDC | Through Hole |
American Zettler | Silver Tin Oxide (AgSnO) | 254 Ohms | 567 mW | Sealed - Epoxy | Non Latching | 30 A | SPST-NO (1 Form A) | 3 ms | 1.5 ms | -40 C | 105 ░C | 47.2 mA | PC Pin | 24 VDC | 12 VDC | 6.9 VDC | 1.5 VDC | Through Hole |
