AM6T Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER +/-12V 6W

Part	Approval Agency	Voltage - Output 2	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Type	Current - Output (Max)	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Efficiency	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Standard Number	Power (Watts)	Voltage - Isolation	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Size / Dimension	Size / Dimension	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Current - Output (Max) [Min]	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]
aimtec AM6T-2412DH35Z	CE IEC UL	-12 V	85 °C	-40 C	2	Isolated Module	250 mA	24-DIP Module 8 Leads	18 V	12 V	36 V	80 %	ITE (Commercial)	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	62368-1	6 W	3.5 kV	Through Hole
aimtec AM6T-4824S-NZ	CE		85 °C	-40 C	1	Isolated Module		24-DIP Module	36 V	24 V	75 V	87 %	ITE (Commercial)	0.79 in	0.43 in	32 mm			1.26 in		6 W	1.5 kV	Through Hole	10.8 mm	20 mm	250 mA

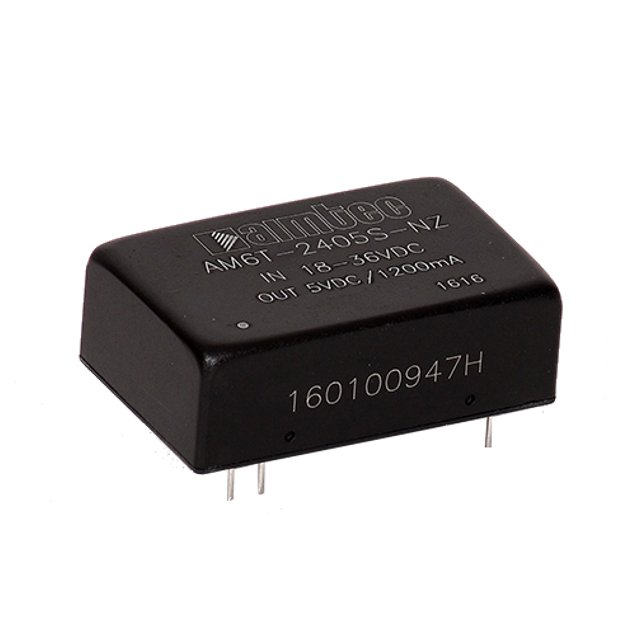

aimtec AM6T-2405S-NZ	CE		85 °C	-40 °C	1	Isolated Module		23-DIP Module 8 Leads	18 V	5 V	36 V		ITE (Commercial)								6 W	1.5 kV	Through Hole			1.2 A	10.3 mm 20 mm 32 mm	0.4 in 0.79 in 1.26 in
aimtec AM6T-4824D-NZ	CE	-24 V	85 °C	-40 C	2	Isolated Module	125 mA	24-DIP Module	36 V		75 V	85 %	ITE (Commercial)	0.8 "	1.25 in	10.2 mm	31.8 mm	20.3 mm	0.4 "		6 W	1.5 kV	Through Hole						-24 V	24 V
aimtec AM6T-1205D-NZ	CE	-5 V	85 °C	-40 C	2	Isolated Module		24-DIP Module	9 V		18 V	80 %	ITE (Commercial)	0.79 in	0.43 in	32 mm			1.26 in		6 W	1.5 kV	Through Hole	10.8 mm	20 mm	600 mA			-5 V	5 V	600 mA
aimtec AM6T-2415D-NZ	CE	-15 V	85 °C	-40 C	2	Isolated Module		24-DIP Module 8 Leads	18 V		36 V	87 %	ITE (Commercial)	0.79 in	0.43 in	32 mm			1.26 in		6 W	1.5 kV	Through Hole	10.8 mm	20 mm							15 V	-15 V
aimtec AM6T-4805SZ	CE IEC UL		85 °C	-40 C	1	Isolated Module		24-DIP Module	36 V	5 V	72 V	80 %	ITE (Commercial)	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	62368-1	6 W	1.5 kV	Through Hole			1.2 A
aimtec AM6T-1218DZ	CE IEC UL	-18 V	85 °C	-40 C	2	Isolated Module		24-DIP Module 8 Leads	9 V	18 V	18 V	80 %	ITE (Commercial)	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	62368-1	6 W	1.5 kV	Through Hole			166 mA
aimtec AM6T-2415SZ	CE IEC UL		85 °C	-40 C	1	Isolated Module		24-DIP Module 7 Leads	18 V	15 V	36 V		ITE (Commercial)	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	62368-1	6 W	1.5 kV	Through Hole			400 mA
