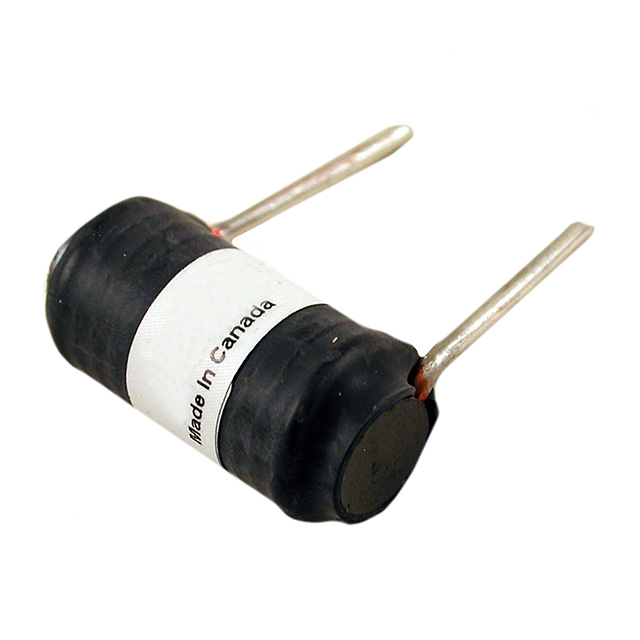

1538 Series

Catalog

FIXED IND 50UH 15A 13 MOHM TH

Part	Mounting Type	Type	DC Resistance (DCR) [Max]	Shielding	Current Rating (Amps)	Package / Case	Tolerance	Inductance Frequency - Test	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	DC Resistance (DCR)
Hammond Manufacturing 1538M24	Through Hole	Wirewound	13 mOhm	Unshielded	15 A	Radial Horizontal Cylinder	10 %	1 kHz	50 µH	1 "	25.4 mm	41.15 mm	1.62 "
Hammond Manufacturing 1538M01	Through Hole	Wirewound	13 mOhm	Unshielded	10 A	Radial Horizontal Cylinder	10 %	1 kHz	5 µH	0.63 in	16 mm			0.88 "	22.35 mm
Hammond Manufacturing 1538M09	Through Hole	Wirewound	12 mOhm	Unshielded	12 Amps	Radial Horizontal Cylinder	10 %	1 kHz	10 µH	0.64 "	16.26 mm			1.12 in	28.45 mm
Hammond Manufacturing 1538M16	Through Hole	Wirewound	8 mOhm	Unshielded	16 A	Radial Horizontal Cylinder	10 %	1 kHz	10 µH	0.94 in	23.88 mm			1.38 "	35.05 mm
Hammond Manufacturing 1538M10	Through Hole	Wirewound		Unshielded	9 A	Radial Horizontal Cylinder	10 %	1 kHz	27 µH	0.88 in	22.35 mm					22.35 mm	0.88 in
Hammond Manufacturing 1538M19	Through Hole	Wirewound	23 mOhm	Unshielded	10 A	Radial Horizontal Cylinder	10 %	1 kHz	68 µH	0.94 in	23.88 mm			1.38 "	35.05 mm
Hammond Manufacturing 1538M05	Through Hole	Wirewound	61 mOhm	Unshielded	4.9 A	Radial Horizontal Cylinder	10 %	1 kHz	100 µH	0.81 in	20.57 mm							28.45 mm	1.12 in
Hammond Manufacturing 1538M11	Through Hole	Wirewound		Unshielded	8 A	Radial Horizontal Cylinder	10 %	1 kHz	50 µH	0.88 in	22.35 mm			1.12 in	28.45 mm					28 mOhm
Hammond Manufacturing 1538M20	Through Hole	Wirewound		Unshielded	10 A	Radial Horizontal Cylinder	10 %	1 kHz	100 µH	0.94 in	23.88 mm			1.62 "	41.15 mm					27 mOhm
Hammond Manufacturing 1538M22	Through Hole	Wirewound	6 mOhm	Unshielded	20 A	Radial Horizontal Cylinder	10 %	1 kHz	10 µH	0.72 in	18.29 mm			1.69 in	42.93 mm
