BM28B0.6 Series

Catalog

CONN RCPT 58POS SMD GOLD

Part	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Number of Rows [custom]	Pitch	Pitch	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Hirose Electric Co Ltd BM28B0.6-58DS/2-0.35V(51)	Gold	0.024 in	0.61 mm	58	Solder Retention	2	0.014 in	0.35 mm	Surface Mount	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	0.6 mm
Hirose Electric Co Ltd BM28B0.6-44DS/2-0.35V(53)	Gold	0.024 in	0.61 mm		Solder Retention	2	0.014 in	0.35 mm	Surface Mount	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	0.6 mm	2	44

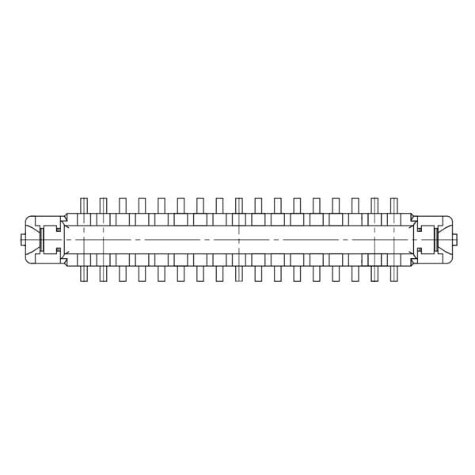

Hirose Electric Co Ltd BM28B0.6-36DP/2-0.35V(53)	Gold	0.018 "	0.46 mm	36	Solder Retention	2	0.014 in	0.35 mm	Surface Mount	1.97 Áin	0.05 Ám	Header Outer Shroud Contacts	0.6 mm
Hirose Electric Co Ltd BM28B0.6-60DS/2-0.35V(53)	Gold	0.024 in	0.61 mm		Solder Retention	2	0.014 in	0.35 mm	Surface Mount	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	0.6 mm			60	2	62

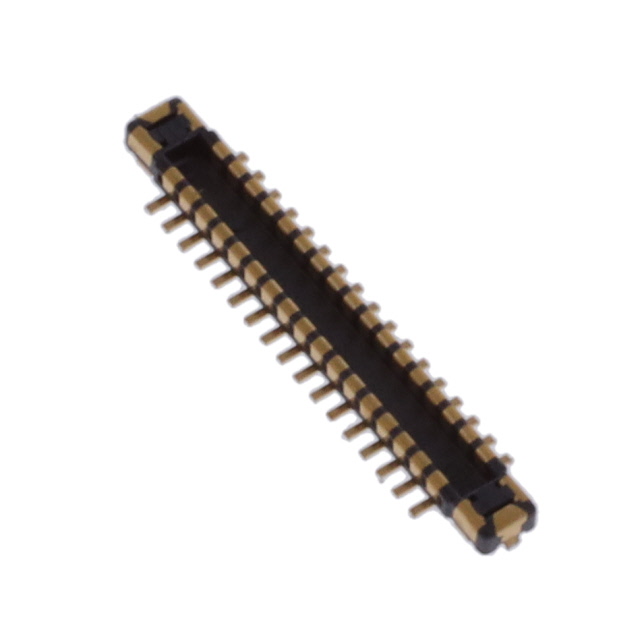

Hirose Electric Co Ltd BM28B0.6-34DP/2-0.35V(53)	Gold	0.018 "	0.46 mm		Solder Retention	2	0.014 in	0.35 mm	Surface Mount	1.97 Áin	0.05 Ám	Header Outer Shroud Contacts	0.6 mm						34
Hirose Electric Co Ltd BM28B0.6-44DP/2-0.35V(51)	Gold	0.018 "	0.46 mm		Solder Retention	2	0.014 in	0.35 mm	Surface Mount	1.97 Áin	0.05 Ám	Header Outer Shroud Contacts	0.6 mm	2	44
Hirose Electric Co Ltd BM28B0.6-44DP/2-0.35V(53)	Gold	0.018 "	0.46 mm		Solder Retention	2	0.014 in	0.35 mm	Surface Mount	1.97 Áin	0.05 Ám	Header Outer Shroud Contacts	0.6 mm	2	44
Hirose Electric Co Ltd BM28B0.6-16DS/2-0.35V(61)
Hirose Electric Co Ltd BM28B0.6-60DS/2-0.35V(51)	Gold	0.024 in	0.61 mm		Solder Retention	2	0.014 in	0.35 mm	Surface Mount	1.97 Áin	0.05 Ám	Receptacle Center Strip Contacts	0.6 mm			60	2	62
Hirose Electric Co Ltd BM28B0.6-10DP/2-0.35V(51)	Gold	0.018 "	0.46 mm	10	Solder Retention	2	0.014 in	0.35 mm	Surface Mount	1.97 Áin	0.05 Ám	Header Outer Shroud Contacts	0.6 mm
