MIC58P01 Series

Catalog

8-BIT PARALLEL INPUT PROTECTED LATCHED DRIVER 28 PLCC 11.5X11.5X4.4MM TUBE ROHS COMPLIANT: YES

Part	Interface	Voltage - Load [Max]	Fault Protection	Output Type	Switch Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Number of Outputs	Current - Output (Max) [Max]	Ratio - Input:Output [custom]	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Package / Case [custom]	Package / Case [custom]
Microchip Technology MIC58P01YV	Parallel Strobe	15 V	Over Temperature UVLO	Bipolar	Latched Driver	28-LCC (J-Lead)	125 °C	-55 °C	Low Side	8	500 mA	1:1	Surface Mount	28-PLCC (11.48x11.48)
Microchip Technology MIC58P01BV	Parallel Strobe	15 V	Over Temperature UVLO	Bipolar	Latched Driver	28-LCC (J-Lead)	125 °C	-55 °C	Low Side	8	500 mA	1:1	Surface Mount	28-PLCC (11.48x11.48)

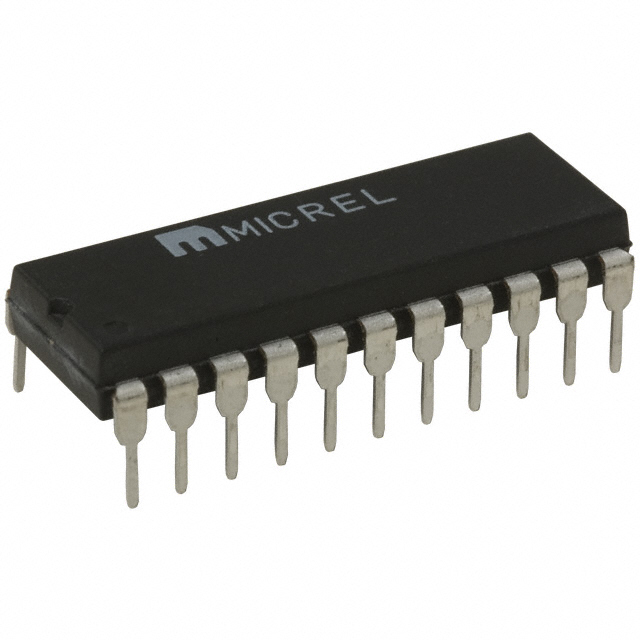

Microchip Technology MIC58P01BN	Parallel Strobe	15 V	Over Temperature UVLO	Bipolar	Latched Driver	22-DIP	125 °C	-55 °C	Low Side	8	500 mA	1:1	Through Hole	22-PDIP	10.16 mm	10.16 mm
Microchip Technology MIC58P01BWM-TR	Parallel Strobe	15 V	Over Temperature UVLO	Bipolar	Latched Driver	24-SOIC	125 °C	-55 °C	Low Side	8	500 mA	1:1	Surface Mount	24-SOIC			7.5 mm	0.295 in
Microchip Technology MIC58P01YWM-TR	Parallel Strobe	15 V	Over Temperature UVLO	Bipolar	Latched Driver	24-SOIC	125 °C	-55 °C	Low Side	8	500 mA	1:1	Surface Mount	24-SOIC			7.5 mm	0.295 in
