C6355 Series

Catalog

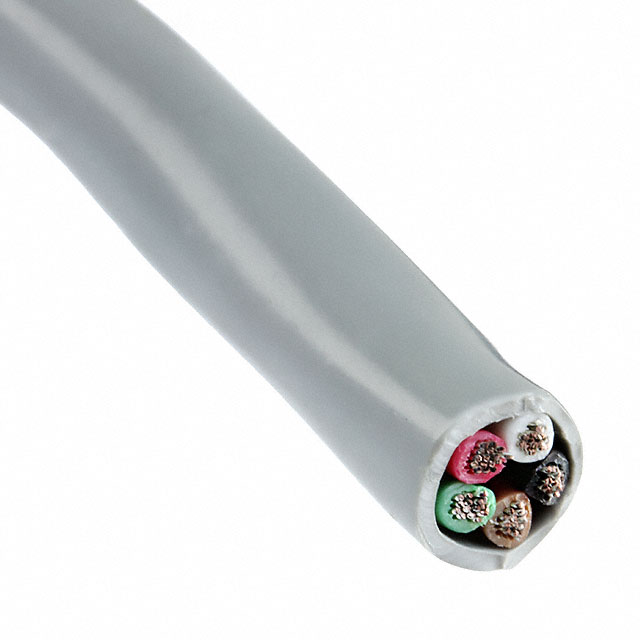

CABLE 5COND 20AWG GRAY 500'

Part	Voltage	Length	Length	Conductor Material	Jacket Color	Cable Type	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation
Prysmian Group C6355A.41.10	300 VDC	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Copper Tinned	Gray	Multi-Conductor	5	0.813 mm	0.032 in	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	0.254 in	6.45 mm	Communication Control	20 AWG	28 AWG	7	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)
Prysmian Group C6355A.41.01	300 VDC	304.8 m	1000 ft	Copper Tinned	Black	Multi-Conductor	5	0.813 mm	0.032 in			Poly-Vinyl Chloride (PVC)	0.254 in	6.45 mm	Communication Control	20 AWG	28 AWG	7	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)
Prysmian Group C6355A.41.10	300 VDC	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Copper Tinned	Gray	Multi-Conductor	5	0.813 mm	0.032 in	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	0.254 in	6.45 mm	Communication Control	20 AWG	28 AWG	7	80 °C	-20 ░C	Poly-Vinyl Chloride (PVC)
