892-040 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 40POS 0.100

...

Part	Material - Insulation	Termination Rows	Read Out	Termination	Number of Rows	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Contact Type	Contact Finish	Color	Pitch	Pitch	Contact Material	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Gender	Number of Positions/Bay/Row [custom]	Termination Rows [custom]	Number of Positions/Bay/Row	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-040-523-108	Polyphenylene Sulfide (PPS)	1	Single	Solder	1	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Gold	Black	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	125 °C	-40 C	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Female	40

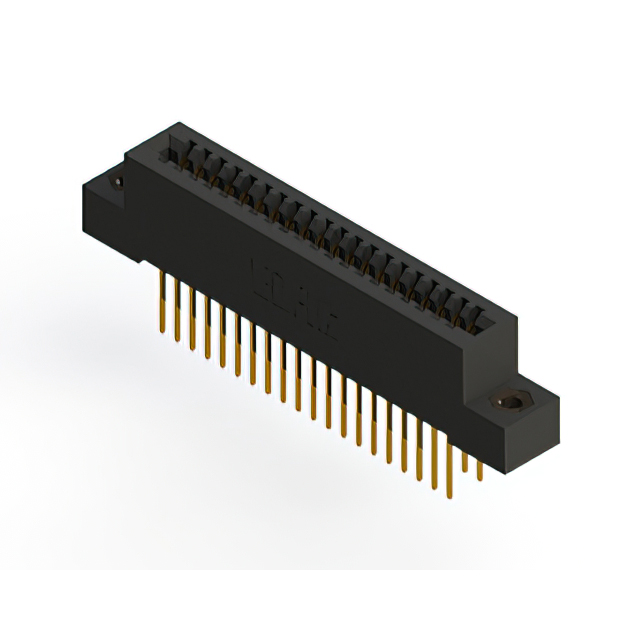

EDAC Inc. 892-040-523-207	Polyphenylene Sulfide (PPS)		Dual	Solder		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Gold	Black	0.1 "	2.54 mm	Copper Alloy	Non Specified - Dual Edge	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Female		2	20 Bay/Row	2
EDAC Inc. 892-040-540-112	Polyphenylene Sulfide (PPS)	1	Single	Wire Wrap	1	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Gold	Black	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount Side Opening Unthreaded	Female	40				0.128 "	3.25 mm
EDAC Inc. 892-040-542-102	Polyphenylene Sulfide (PPS)	1	Single	Wire Wrap	1	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Gold	Black	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Female	40				0.128 "	3.25 mm
EDAC Inc. 892-040-521-102	Polyphenylene Sulfide (PPS)	1	Single	Solder	1	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Gold	Black	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Female	40				0.128 "	3.25 mm

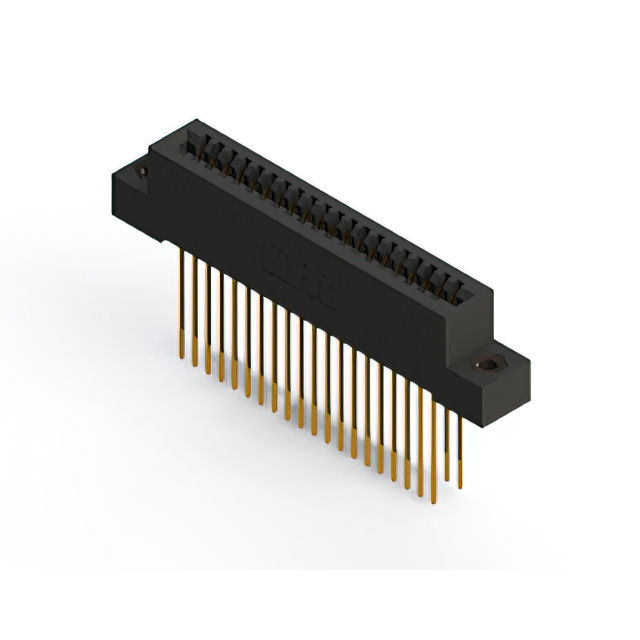

EDAC Inc. 892-040-541-207	Polyphenylene Sulfide (PPS)		Dual	Wire Wrap		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Gold	Black	0.1 "	2.54 mm	Copper Alloy	Non Specified - Dual Edge	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Female		2	20 Bay/Row	2

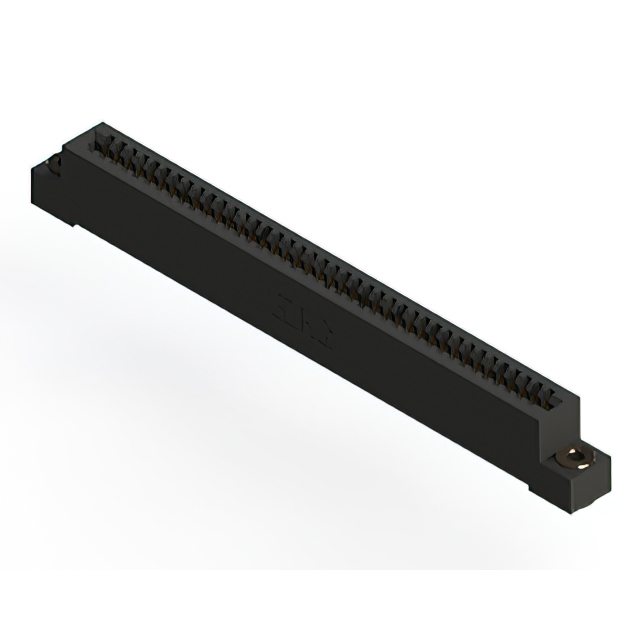

EDAC Inc. 892-040-524-103	Polyphenylene Sulfide (PPS)	1	Single	Solder	1	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Gold	Black	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	125 °C	-40 C	0.25 Ám	10 Áin	Floating Bobbin Flush Mount	Female	40				0.116 "	2.95 mm
EDAC Inc. 892-040-521-108	Polyphenylene Sulfide (PPS)	1	Single	Solder	1	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Gold	Black	0.1 "	2.54 mm	Copper Alloy	Non Specified - Single Edge	125 °C	-40 C	0.25 Ám	10 Áin	4-40 Flush Mount Threaded Insert Top Opening	Female	40

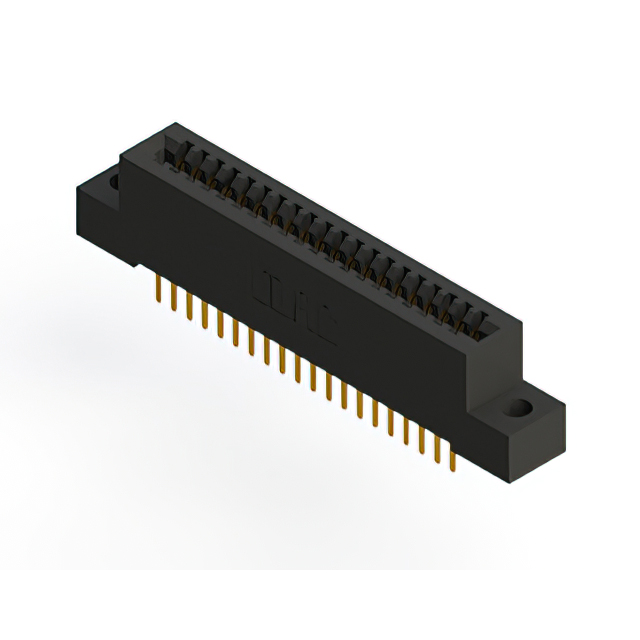

EDAC Inc. 892-040-520-204	Polyphenylene Sulfide (PPS)		Dual	Solder		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Gold	Black	0.1 "	2.54 mm	Copper Alloy	Non Specified - Dual Edge	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	Female		2	20 Bay/Row	2	0.156 "	3.96 mm

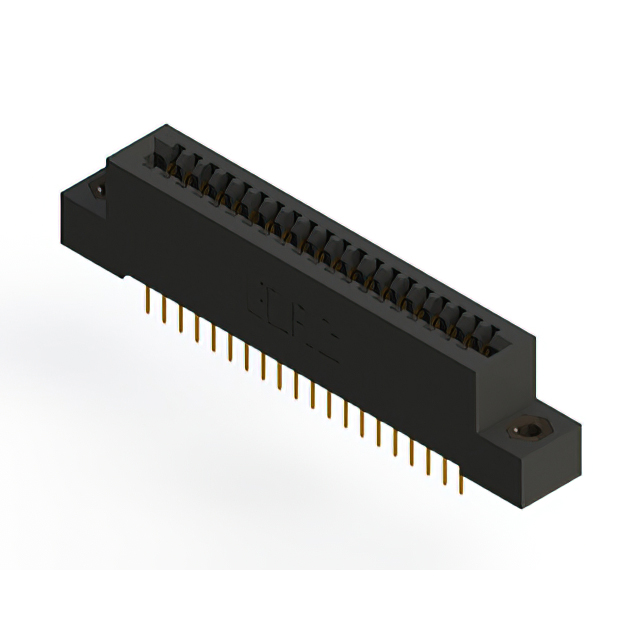

EDAC Inc. 892-040-524-207	Polyphenylene Sulfide (PPS)		Dual	Solder		Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	40	Cantilever	Gold	Black	0.1 "	2.54 mm	Copper Alloy	Non Specified - Dual Edge	125 °C	-40 C	0.25 Ám	10 Áin	Flush Mount M3 Threaded Insert Top Opening	Female		2	20 Bay/Row	2
