11938MA Series

Catalog

DC AXIAL FAN, 24 V, SQUARE, 119 MM, 38 MM, BALL BEARING, 181.16 CFM

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Ingress Protection	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Fan Type	Static Pressure	Static Pressure	Termination	Noise	Voltage - Rated	Width [y]	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Air Flow	Air Flow	RPM
NMB TECHNOLOGIES 11938MA-24P-ET-D0	Plastic	930 mA	Aluminum	100000 Hrs	IP69K - Dust Tight High Temp Water Jets Waterproof	26.4 VDC	15 VDC	Ball	70 °C	-10 °C	Auto Restart Speed Sensor (Tach)	Tubeaxial	0.86 in H2O	214.2 Pa	3 Wire Leads	59.5 dB	24 VDC	38.4 mm	Square	119 mm	119 mm	22.4 W	181.2 CFM	5.13 m³/min
NMB TECHNOLOGIES 11938MA-48L-ET-D0	Plastic		Aluminum	100000 Hrs	IP69K - Dust Tight High Temp Water Jets Waterproof			Ball	70 °C	-10 °C	Auto Restart Speed Sensor (Tach)	Tubeaxial			3 Wire Leads		48 VDC	38.4 mm	Square	119 mm	119 mm
NMB TECHNOLOGIES 11938MA-24N-EL-D0	Plastic	0.74 A	Aluminum	100000 Hrs	IP69K - Dust Tight High Temp Water Jets Waterproof			Ball	70 °C	-10 °C	Auto Restart Locked Rotor Sensor	Tubeaxial	0.69 in H2O	171.8 Pa	3 Wire Leads	56.5 dB	24 VDC	38.4 mm	Square	119 mm	119 mm	17.8 W	162.1 CFM	4.59 m³/min	4200 RPM

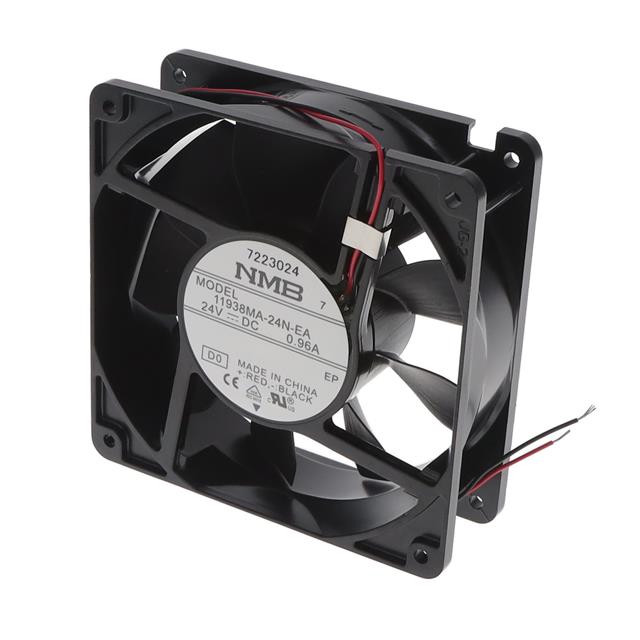

NMB TECHNOLOGIES 11938MA-24N-EA-D0	Plastic	0.74 A	Aluminum	100000 Hrs	IP69K			Ball	70 °C	-10 °C	Auto Restart	Tubeaxial	0.69 in H2O	171.8 Pa	2 Wire Leads	56.5 dB	24 VDC	38.4 mm	Square	119 mm	119 mm	17.8 W	162.1 CFM	4.59 m³/min	4200 RPM
NMB TECHNOLOGIES 11938MA-24P-EA-D0	Plastic	930 mA	Aluminum	100000 Hrs	IP69K - Dust Tight High Temp Water Jets Waterproof	26.4 VDC	15 VDC	Ball	70 °C	-10 °C	Auto Restart	Tubeaxial	0.86 in H2O	214.2 Pa	2 Wire Leads	59.5 dB	24 VDC	38.4 mm	Square	119 mm	119 mm	22.4 W	181.2 CFM	5.13 m³/min
NMB TECHNOLOGIES 11938MA-24M-EA-D0	Plastic	0.52 A	Aluminum	100000 Hrs	IP69K - Dust Tight High Temp Water Jets Waterproof			Ball	70 °C	-10 °C	Auto Restart	Tubeaxial	0.55 in H2O	137 Pa	2 Wire Leads	53.5 dB	24 VDC	38.4 mm	Square	119 mm	119 mm	12.5 W	142 CFM	3.98 m³/min	3700 RPM
NMB TECHNOLOGIES 11938MA-24L-EA-D0	Plastic	0.35 A	Aluminum	100000 Hrs	IP69K - Dust Tight High Temp Water Jets Waterproof			Ball	70 °C	-10 °C	Auto Restart	Tubeaxial	0.41 in H2O	102.1 Pa	2 Wire Leads	49.5 dB	24 VDC	38.4 mm	Square	119 mm	119 mm	8.4 W	122.2 CFM	3.46 m³/min	3200 RPM
NMB TECHNOLOGIES 11938MA-48L-EA-D0	Plastic		Aluminum	100000 Hrs	IP69K - Dust Tight High Temp Water Jets Waterproof			Ball	70 °C	-10 °C	Auto Restart	Tubeaxial			2 Wire Leads		48 VDC	38.4 mm	Square	119 mm	119 mm
NMB TECHNOLOGIES 11938MA-24K-EL-D0	Plastic	0.26 A	Aluminum	100000 Hrs	IP69K - Dust Tight High Temp Water Jets Waterproof			Ball	70 °C	-10 °C	Auto Restart Locked Rotor Sensor	Tubeaxial	0.31 in H2O	77.2 Pa	3 Wire Leads	45 dB(A)	24 VDC	38.4 mm	Square	119 mm	119 mm	6.24 W	102.8 CFM	2.88 mł/min	2700 RPM
NMB TECHNOLOGIES 11938MA-48P-EA-D0	Plastic		Aluminum	100000 Hrs	IP69K - Dust Tight High Temp Water Jets Waterproof			Ball	70 °C	-10 °C	Auto Restart	Tubeaxial			2 Wire Leads		48 VDC	38.4 mm	Square	119 mm	119 mm
