LDK320 Series

Catalog

200 MA LOW QUIESCENT CURRENT AND HIGH PSRR VOLTAGE REGULATOR

Part	Voltage Dropout (Max) [Max]	PSRR [Min]	PSRR [Max]	Protection Features	Voltage - Input (Max) [Max]	Mounting Type	Number of Regulators	Output Configuration	Current - Supply (Max) [Max]	Package / Case	Current - Output	Current - Quiescent (Iq)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Supplier Device Package	Control Features	Output Type	Voltage - Output (Max) [Max]
STMicroelectronics LDK320ADU33R	0.35 V	48 dB	88 dB	Over Current Over Temperature	18 V	Surface Mount	1	Positive	100 çA	TO-243AA	0.2 A	90 çA	-40 C	125 °C	3.3 V

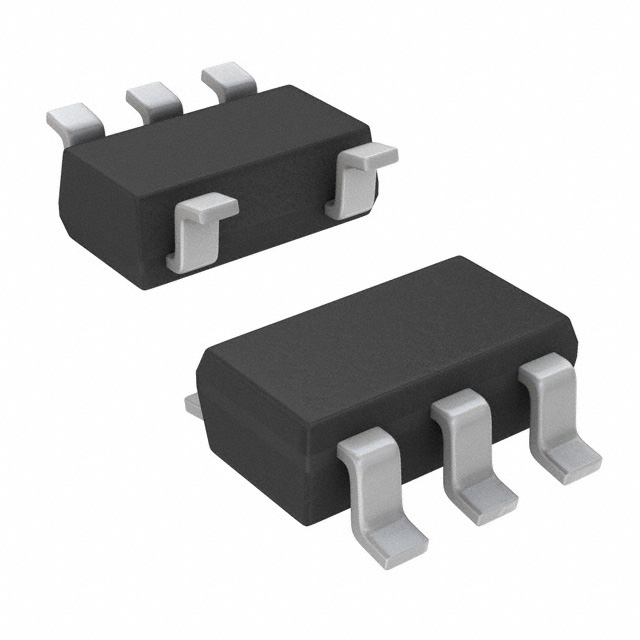

STMicroelectronics LDK320M30R	0.35 V	48 dB	88 dB	Over Current Over Temperature	18 V	Surface Mount	1	Positive	100 çA	SC-74A SOT-753	0.2 A	90 çA	-40 C	125 °C	3 V	SOT-23-5	Enable
STMicroelectronics LDK320AM36R	0.35 V	48 dB	88 dB	Over Current Over Temperature	18 V	Surface Mount	1	Positive	100 çA	SC-74A SOT-753	0.2 A	90 çA	-40 C	125 °C	3.6 V	SOT-23-5	Enable
STMicroelectronics LDK320AM25R	0.35 V	48 dB	88 dB	Over Current Over Temperature	18 V	Surface Mount	1	Positive	100 çA	SC-74A SOT-753	0.2 A	90 çA	-40 C	125 °C	2.5 V	SOT-23-5	Enable
STMicroelectronics LDK320AM30R	0.35 V	48 dB	88 dB	Over Current Over Temperature	18 V	Surface Mount	1	Positive	100 çA	SC-74A SOT-753	0.2 A	90 çA	-40 C	125 °C	3 V	SOT-23-5	Enable
STMicroelectronics LDK320M18R	0.35 V	48 dB	88 dB	Over Current Over Temperature	18 V	Surface Mount	1	Positive	100 çA	SC-74A SOT-753	0.2 A	90 çA	-40 C	125 °C	1.8 V	SOT-23-5	Enable
STMicroelectronics LDK320M33R	0.35 V	48 dB	88 dB	Over Current Over Temperature	18 V	Surface Mount	1	Positive	100 çA	SC-74A SOT-753	0.2 A	90 çA	-40 C	125 °C	3.3 V	SOT-23-5	Enable
STMicroelectronics LDK320AM33R	0.35 V	48 dB	88 dB	Over Current Over Temperature	18 V	Surface Mount	1	Positive	100 çA	SC-74A SOT-753	0.2 A	90 çA	-40 C	125 °C	3.3 V	SOT-23-5	Enable
STMicroelectronics LDK320AM15R	0.35 V	48 dB	88 dB	Over Current Over Temperature	18 V	Surface Mount	1	Positive	100 çA	SC-74A SOT-753	0.2 A	90 çA	-40 C	125 °C	1.5 V	SOT-23-5	Enable
STMicroelectronics LDK320AM-R	0.35 V	48 dB	88 dB	Over Current Over Temperature	18 V	Surface Mount	1	Positive	100 çA	SC-74A SOT-753	0.2 A	90 çA	-40 C	125 °C	1.2 V	SOT-23-5	Enable	Adjustable	12 V
