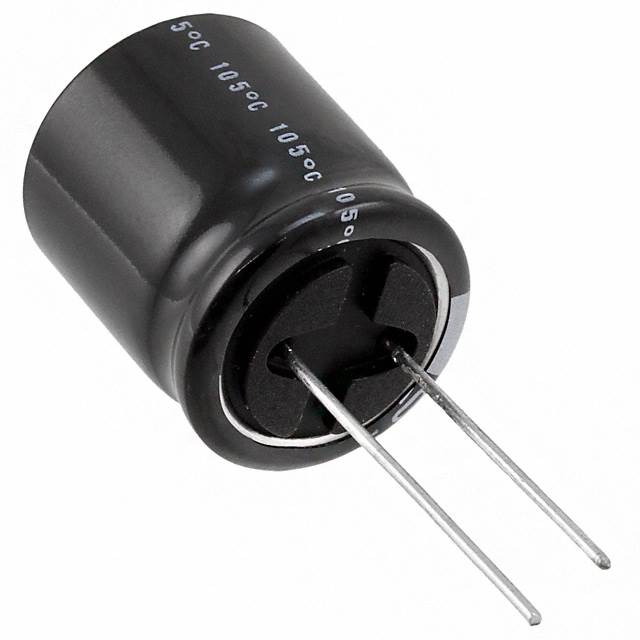

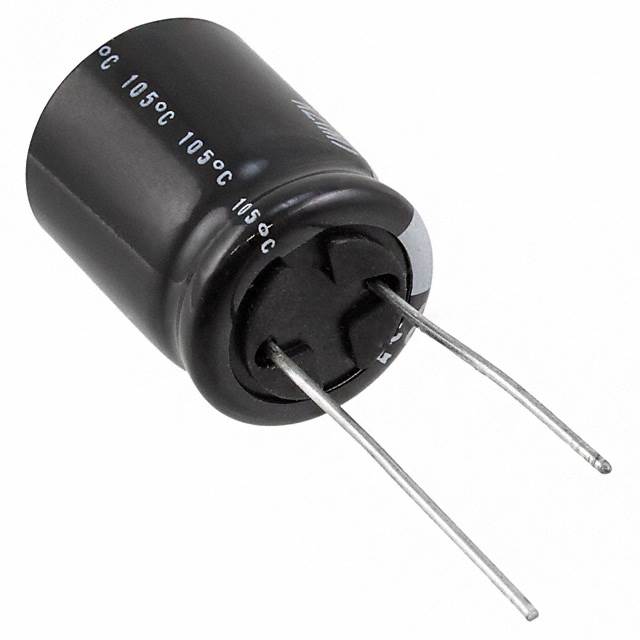

URZ Series

Manufacturer: Nichicon

Catalog

CAP ALUMINUM LYTIC 330UF 100V 20% (18 X 15MM) RADIAL 7.5MM 0.54A 1000H 105°C BULK

Part	Ripple Current @ High Frequency	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Ripple Current @ Low Frequency	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Mounting Type	Voltage - Rated	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon URZ2A331MHD	810 mA	Polar	0.709 in	18 mm	General Purpose	540 mA	20 %	Can Radial	0.65 in	16.5 mm	-55 C	105 ░C	330 µF	1000 Hrs	0.295 in	7.5 mm	Through Hole	100 V
Nichicon URZ1E222MHD	1.1155 A	Polar	0.709 in	18 mm	General Purpose	970 mA	20 %	Can Radial	0.65 in	16.5 mm	-55 C	105 ░C	2200 µF	1000 Hrs	0.295 in	7.5 mm	Through Hole	25 VDC
Nichicon URZ2E220MHD	320 mA	Polar	0.63 in	16 mm	General Purpose	200 mA	20 %	Can Radial	0.65 in	16.5 mm	-40 C	105 ░C	22 µF	1000 Hrs	0.295 in	7.5 mm	Through Hole	250 V
Nichicon URZ1V222MHD1TN	1.2765 A	Polar	0.709 in	18 mm	General Purpose	1.11 A	20 %	Can Radial			-55 C	105 ░C	2200 µF	1000 Hrs	0.295 in	7.5 mm	Through Hole	35 V	0.866 in	22 mm
Nichicon URZ1V471MHD1TD		Polar	0.492 in	12.5 mm	General Purpose	420 mA	20 %	Can Radial			-55 C	105 ░C	470 µF	1000 Hrs	0.197 "	5 mm	Through Hole	35 V			14 mm	0.551 in
Nichicon URZ1A472MHD1TN	1.288 A	Polar	0.709 in	18 mm	General Purpose	1.12 A	20 %	Can Radial			-55 C	105 ░C	4700 µF	1000 Hrs	0.295 in	7.5 mm	Through Hole	10 V	0.866 in	22 mm
Nichicon URZ0J332MHD1CV	989 mA	Polar	0.63 in	16 mm	General Purpose	860 mA	20 %	Can Radial	0.65 in	16.5 mm	-55 C	105 ░C	3.3 mF	1000 Hrs	0.295 in	7.5 mm	Through Hole	6.3 VDC
Nichicon URZ1E222MHD1CV	1.1155 A	Polar	0.709 in	18 mm	General Purpose	970 mA	20 %	Can Radial	0.65 in	16.5 mm	-55 C	105 ░C	2200 µF	1000 Hrs	0.295 in	7.5 mm	Through Hole	25 VDC
Nichicon URZ2G220MHD6TN	320 mA	Polar	0.63 in	16 mm	General Purpose	200 mA	20 %	Can Radial			-40 C	105 ░C	22 µF	1000 Hrs	0.295 in	7.5 mm	Through Hole	400 V	0.866 in	22 mm
Nichicon URZ1E102MHD1TO	678.5 mA	Polar	0.492 in	12.5 mm	General Purpose	590 mA	20 %	Can Radial	0.65 in	16.5 mm	-55 C	105 ░C	1000 µF	1000 Hrs	0.197 "	5 mm	Through Hole	25 VDC
