0217.050

0217.050 Series

FUSE 5X20MM V PACK (P)

Manufacturer: LITTELFUSE

Catalog

FUSE 5X20MM V PACK (P)

Description

AI

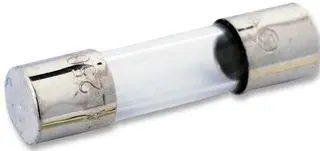

5x20mm fast-acting glass body cartridge fuse designed to IEC specification.

Catalog

FUSE 5X20MM V PACK (P)

Part	Melting I²t	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Breaking Capacity @ Rated Voltage	Response Time	Package / Case [y]	Package / Case	Package / Case [x]	Fuse Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [x]	Size / Dimension [x]
LITTELFUSE 0217.050MRET1P	0.00019 I²t	50 mA	Through Hole	250 V	35 A	Fast Blow	20 mm	Axial	5 mm	Cartridge Glass	-55 C	125 °C	CCC CE CSA K-Mark SEMKO UL VDE	6 mm	22.5 mm	0.236 in	0.886 in
LITTELFUSE 0217.050MXP	0.00019 I²t	50 mA	Requires Holder	250 V	35 A	Fast Blow	20 mm		5 mm	Cartridge Glass	-55 C	125 °C	CCC CE CSA K-Mark SEMKO UL VDE	5.2 mm		0.205 in		20 mm	0.787 "
LITTELFUSE 0217.050MXEP	0.00019 I²t	50 mA	Through Hole	250 V	35 A	Fast Blow	20 mm	Axial	5 mm	Cartridge Glass	-55 C	125 °C	CCC CE CSA K-Mark SEMKO UL VDE	6 mm	22.5 mm	0.236 in	0.886 in
LITTELFUSE 0217.050MXBP	0.00019 I²t	50 mA	Requires Holder	250 V	35 A	Fast Blow	20 mm		5 mm	Cartridge Glass	-55 C	125 °C	CCC CE CSA KC SEMKO UL VDE	5.2 mm		0.205 in		20 mm	0.787 "
LITTELFUSE 0217.050HXP	0.00019 I²t	50 mA	Requires Holder	250 V	35 A	Fast Blow	20 mm		5 mm	Cartridge Glass	-55 C	125 °C	CCC CE CSA K-Mark SEMKO UL VDE	5.2 mm		0.205 in		20 mm	0.787 "
