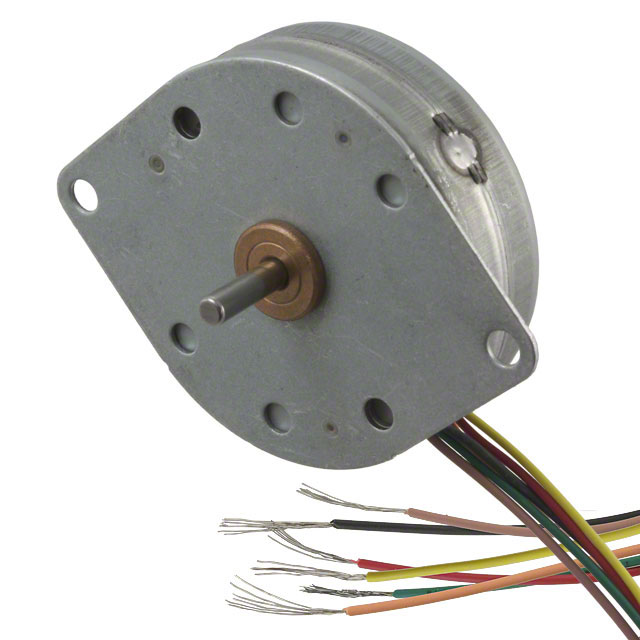

42S048 Series
Manufacturer: Portescap
Beta
⌘K
STEPPER MOTOR PM UNIPOLAR 12V
| Part | Rotor Inertia | Weight [custom] | Weight [custom] | Type | Features | Termination Style | Step Angle | Size / Dimension [diameter] | Size / Dimension | Size / Dimension [diameter] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Coil Resistance | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Accuracy | Current Rating (Amps) | Voltage - Rated | Coil Type | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Portescap | 9.5 gcm˛ | 87.54 g | 0.193 lb | Permanent Magnet | Round Shaft | Wire Leads | 7.5 ° | 42 mm | Round | 1.65 " | 6.3 oz-in | 44.5 mNm | 75 Ohms | 0.118 in | 3 mm | 15 % | 160 mA | 12 VDC | Unipolar | 0.45 in | 11.43 mm | -20 ░C | 70 °C | 1.95 in | 49.48 mm |
