BIDD05N Series
Manufacturer: Bourns Inc.
Beta
⌘K

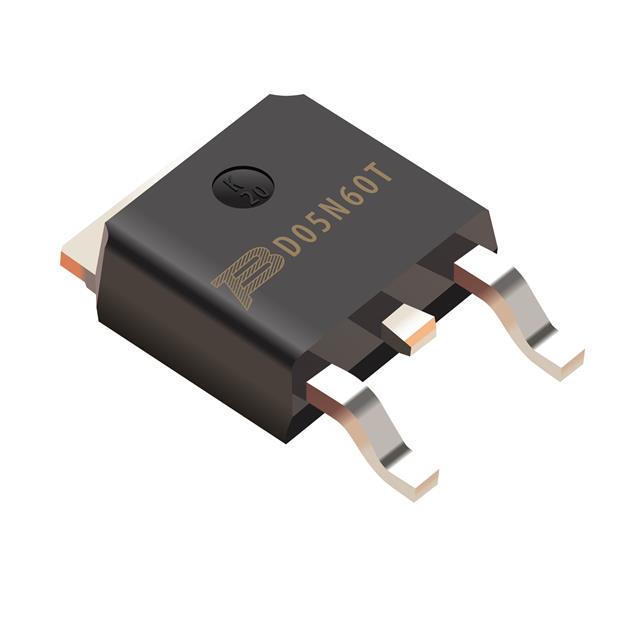

IGBT TRENCH FS 600V 10A TO252
| Part | IGBT Type | Operating Temperature [Max] | Operating Temperature [Min] | Gate Charge | Power - Max [Max] | Voltage - Collector Emitter Breakdown (Max) [Max] | Supplier Device Package | Vce(on) (Max) @ Vge, Ic | Package / Case | Current - Collector Pulsed (Icm) | Reverse Recovery Time (trr) | Switching Energy | Td (on/off) @ 25°C | Mounting Type | Test Condition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Trench Field Stop | 150 °C | -55 °C | 18.5 nC | 82 W | 600 V | TO-252 (DPAK) | 2 V | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 15 A | 40 ns | 70 µJ 200 µJ | 7 ns 18 ns | Surface Mount | 5 A 10 Ohm 15 V 400 V |
