DF23C Series

Catalog

CONNECTOR

Part	Pitch	Pitch	Number of Positions	Mounting Type	Contact Finish	Mated Stacking Heights	Connector Type	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]
Hirose Electric Co Ltd DF23C-12DP-0.5V(77)
Hirose Electric Co Ltd DF23C-14DP-0.5V(73)
Hirose Electric Co Ltd DF23C-18DS-0.5V(53)	0.02 "	0.5 mm	18	Surface Mount	Gold	1.5 mm	Receptacle Center Strip Contacts	2	1.45 mm	0.057 in
Hirose Electric Co Ltd DF23C-12DS-0.5V(92)	0.02 "	0.5 mm	12	Surface Mount	Gold	1.5 mm	Receptacle Center Strip Contacts	2	1.45 mm	0.057 in
Hirose Electric Co Ltd DF23C-14DS-0.5V(51)	0.02 "	0.5 mm	14	Surface Mount	Gold	1.5 mm	Receptacle Center Strip Contacts	2	1.45 mm	0.057 in

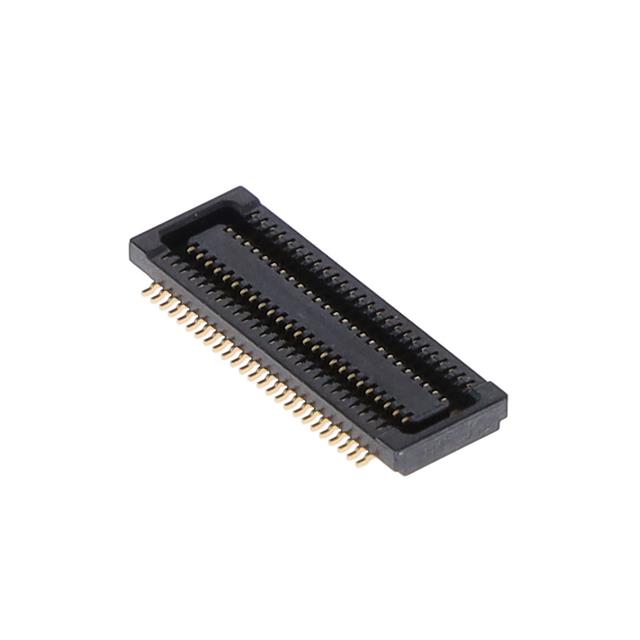

Hirose Electric Co Ltd DF23C-50DS-0.5V(51)	0.02 "	0.5 mm	50	Surface Mount	Gold	1.5 mm	Receptacle Center Strip Contacts	2	1.45 mm	0.057 in
Hirose Electric Co Ltd DF23C-10DP-0.5V(92)	0.02 "	0.5 mm	10	Surface Mount	Gold	1.5 mm	Plug Outer Shroud Contacts	2	1.2 mm	0.047 "
Hirose Electric Co Ltd DF23C-30DP-0.5V(51)	0.02 "	0.5 mm	30	Surface Mount	Gold	1.5 mm	Plug Outer Shroud Contacts	2	1.2 mm	0.047 "
Hirose Electric Co Ltd DF23C-10DP-0.5V(51)	0.02 "	0.5 mm	10	Surface Mount	Gold	1.5 mm	Plug Outer Shroud Contacts	2	1.2 mm	0.047 "
Hirose Electric Co Ltd DF23C-18DS-0.5V(83)
