DF22L Series

Catalog

CONNECTOR

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Insulation Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Material Flammability Rating	Features	Termination	Contact Material	Contact Shape	Style	Number of Positions Loaded	Number of Rows	Number of Positions	Current Rating (Amps)	Contact Finish - Mating	Voltage Rating	Mounting Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Connector Type	Contact Finish - Post	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Note	Contact Termination	Color	Pitch	Pitch

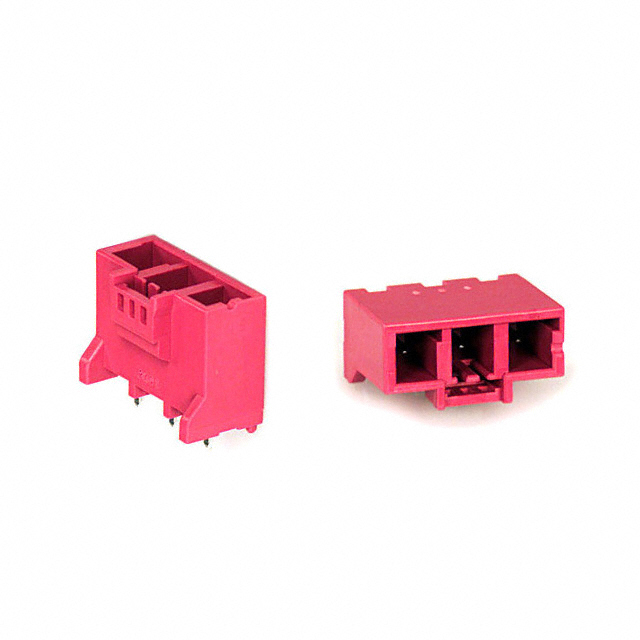

Hirose Electric Co Ltd DF22L-1P-7.92DSA(06)

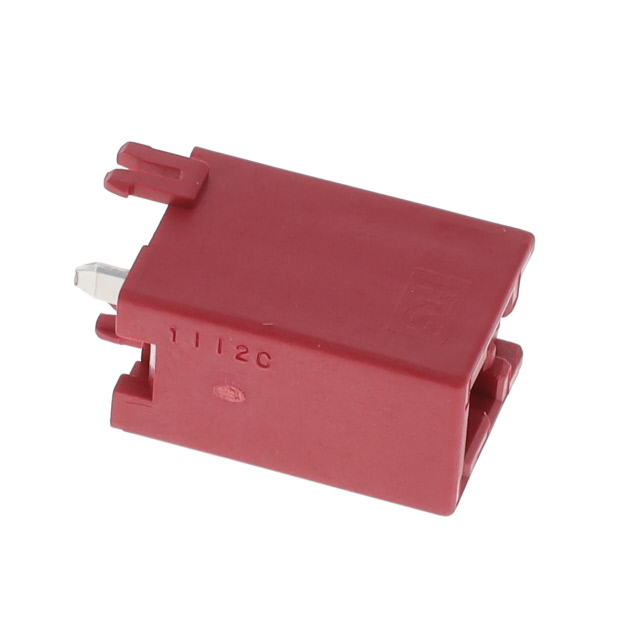

Hirose Electric Co Ltd DF22L-1P-7.92DSA(57)	0.203 µm	8 µin	Shrouded - 4 Wall	Nylon Polyamide (PA)	3.7 mm	0.146 "	8 µin	0.203 µm	Male Pin	UL94 V-0	Board Guide Board Lock	Solder	Copper Alloy	Square	Board to Cable/Wire	All	1	1	Varies by Wire Gauge	Gold	1000 VAC	Through Hole	0.713 in	18.1 mm	9 mm	0.354 in	Latch Holder	-55 C	85 °C	Red	Header	Gold

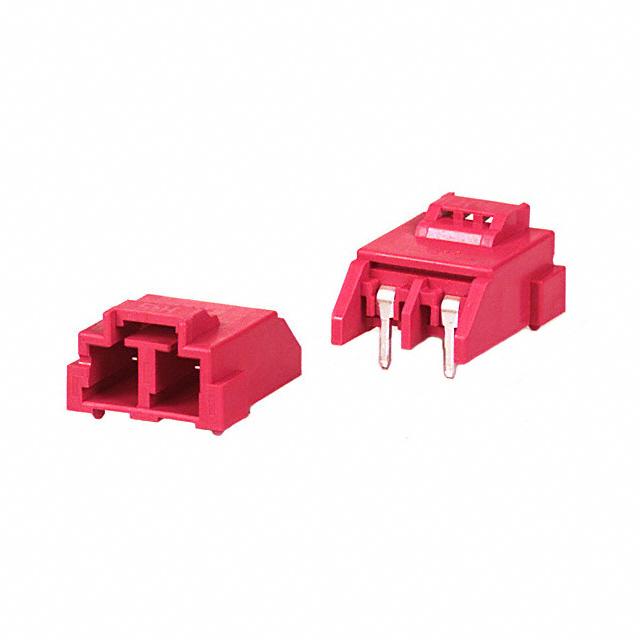

Hirose Electric Co Ltd DF22L-2P-7.92DS			Shrouded - 4 Wall	Nylon Polyamide (PA)	3.7 mm	0.146 "			Male Pin	UL94 V-0	Board Guide	Solder	Copper Alloy	Square	Board to Cable/Wire	All	1	2		Tin-Lead	1000 VDC	Right Angle Through Hole	0.48 in	12.2 mm	9 mm	0.354 in	Latch Holder	-35 °C	85 °C	Red	Header		25 A	0.312 in	7.92 mm
Hirose Electric Co Ltd DF22L-4P-7.92DSA(06)

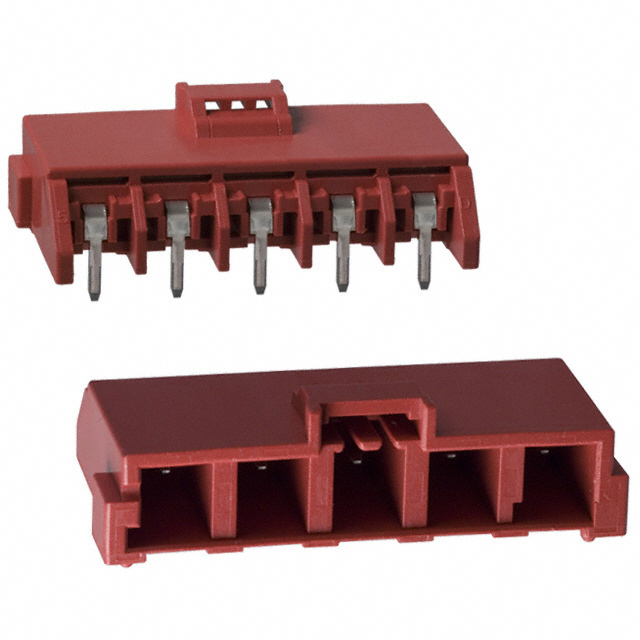

Hirose Electric Co Ltd DF22L-5P-7.92DS			Shrouded - 4 Wall	Nylon Polyamide (PA)	3.7 mm	0.146 "			Male Pin	UL94 V-0	Board Guide	Solder	Copper Alloy	Square	Board to Cable/Wire	All	1	5		Tin-Lead	1000 VDC	Right Angle Through Hole	0.48 in	12.2 mm	9 mm	0.354 in	Latch Holder	-35 °C	85 °C	Red	Header		22 A	0.312 in	7.92 mm
Hirose Electric Co Ltd DF22L-2P-7.92DSA(53)	0.203 µm	8 µin	Shrouded - 4 Wall	Nylon Polyamide (PA)	3.7 mm	0.146 "	8 µin	0.203 µm	Male Pin	UL94 V-0	Board Guide Board Lock	Solder	Copper Alloy	Square	Board to Cable/Wire	All	1	2	Varies by Wire Gauge	Gold	1000 VAC	Through Hole	0.713 in	18.1 mm	9 mm	0.354 in	Latch Holder	-55 C	85 °C	Red	Header	Gold		0.312 in	7.92 mm

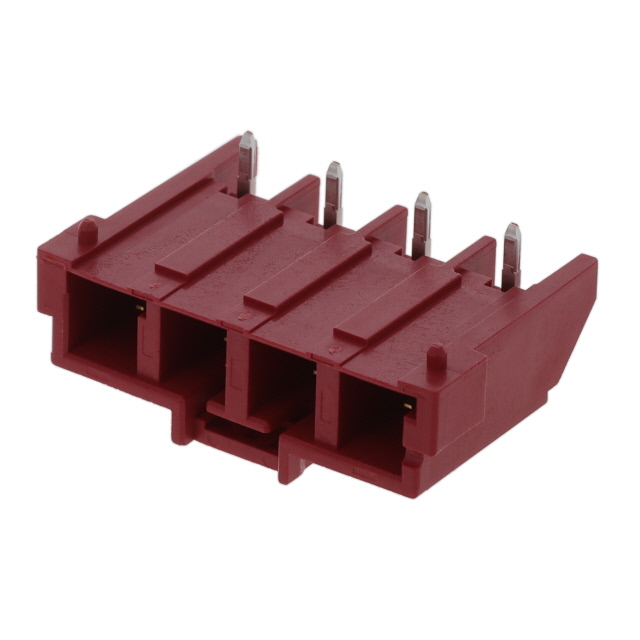

Hirose Electric Co Ltd DF22L-4P-7.92DS(53)	0.203 µm	8 µin	Shrouded - 4 Wall	Nylon Polyamide (PA)	3.7 mm	0.146 "	8 µin	0.203 µm	Male Pin	UL94 V-0	Board Guide	Solder	Copper Alloy	Square	Board to Cable/Wire	All	1	4	Varies by Wire Gauge	Gold	1000 VAC	Right Angle Through Hole	0.48 in	12.2 mm	9 mm	0.354 in	Latch Holder	-55 C	85 °C	Red	Header	Gold		0.312 in	7.92 mm

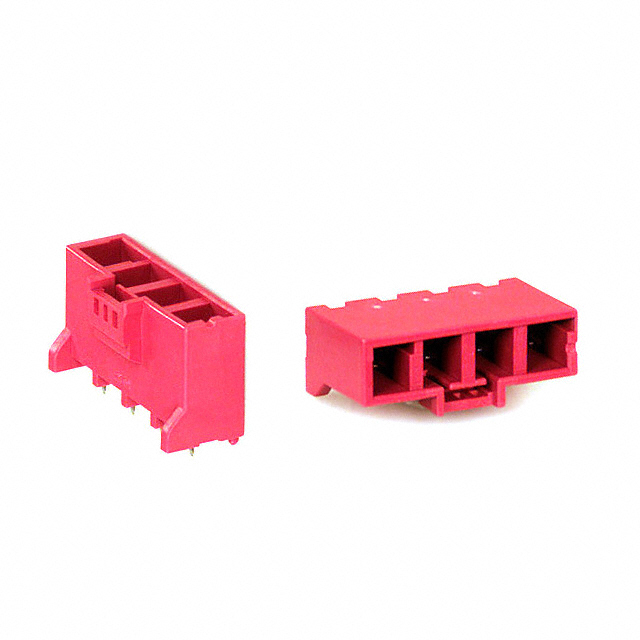

Hirose Electric Co Ltd DF22L-4P-7.92DSA			Shrouded - 4 Wall	Nylon Polyamide (PA)	3.7 mm	0.146 "			Male Pin	UL94 V-0	Board Guide	Solder	Copper Alloy	Square	Board to Cable/Wire	All	1	4			1000 VDC	Through Hole	0.713 in	18.1 mm	9 mm	0.354 in	Latch Holder	-35 °C	85 °C	Red	Header	Tin	22 A	0.312 in	7.92 mm	25.7 mm 28.7 mm
Hirose Electric Co Ltd DF22L-5P-7.92DSA(06)

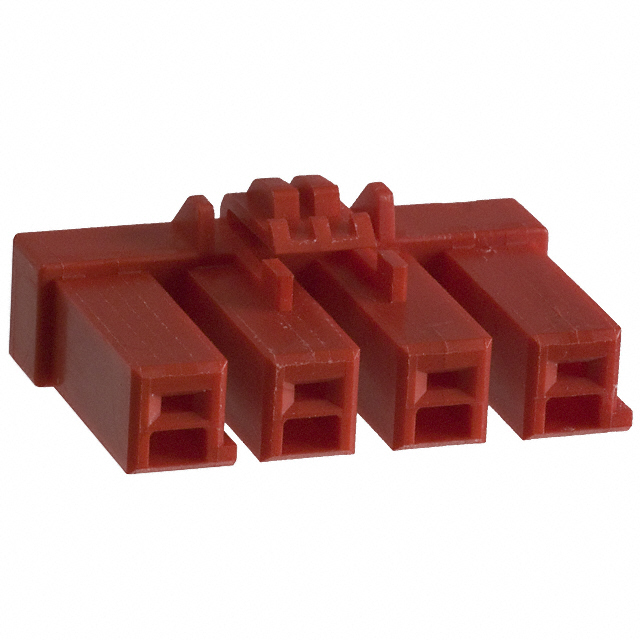

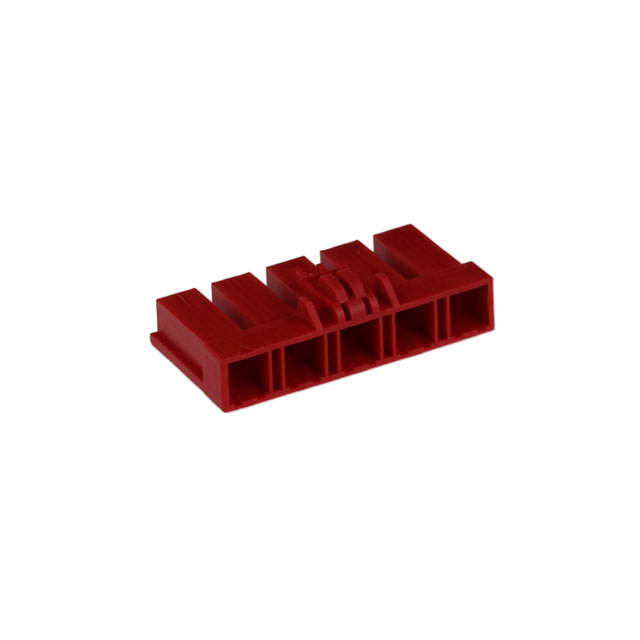

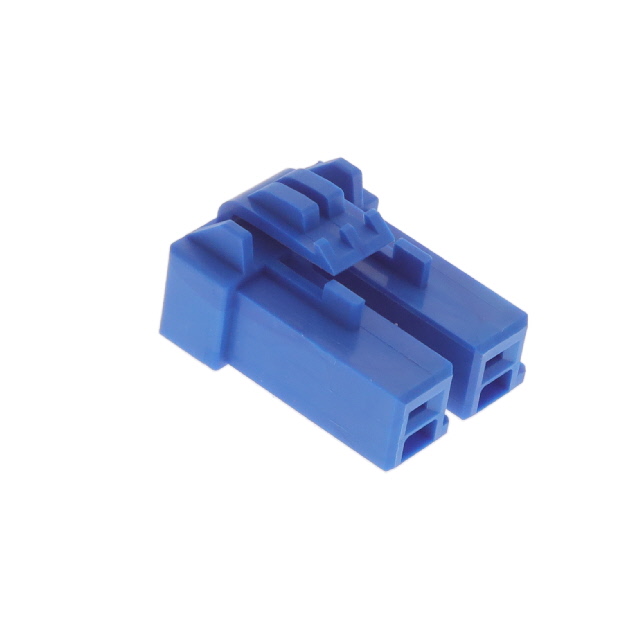

Hirose Electric Co Ltd DF22L-4S-7.92C(28)				Nylon Polyamide (PA)					Female Socket		Polarizing Key						1	4				Free Hanging (In-Line)					Latch Lock	-55 C	85 °C		Receptacle						Contacts Not Included	Crimp	Red	0.312 in	7.92 mm
