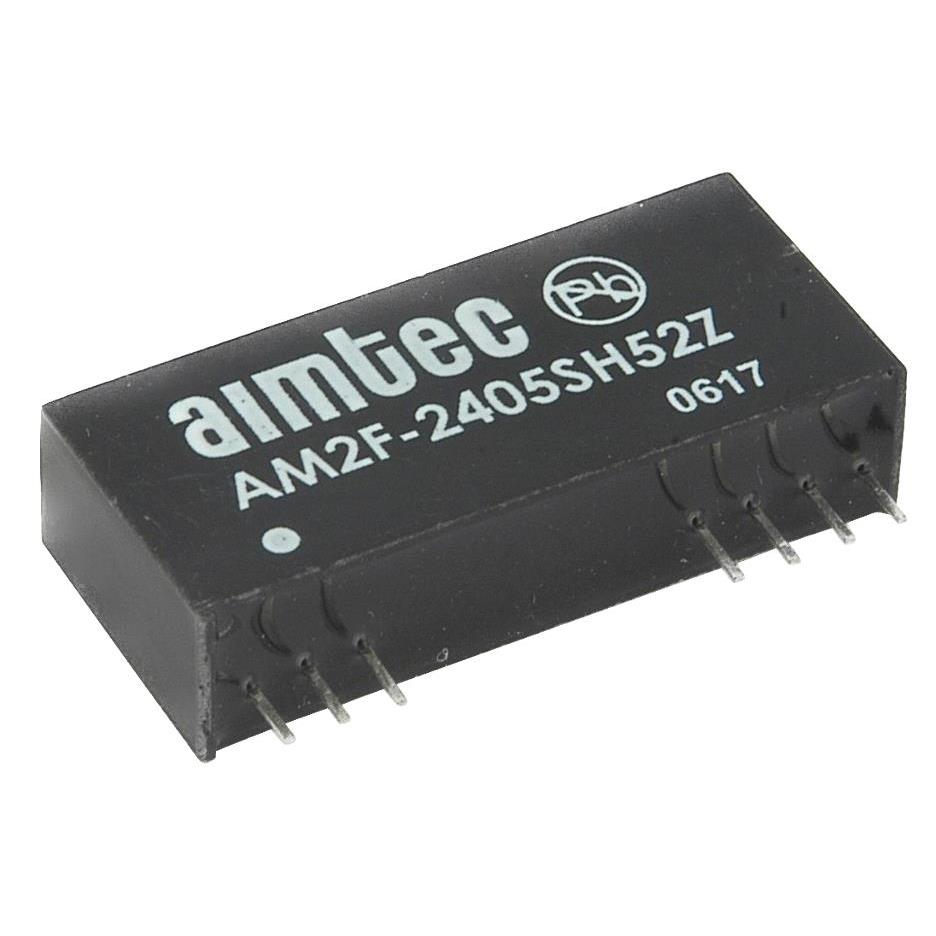

AM2F Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 18V 2W

Part	Current - Output (Max) [Max]	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Efficiency	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1	Voltage - Input (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Isolation	Mounting Type
aimtec AM2F-0518SH30Z	111 mA	2 W	32 mm	1.26 in	8.1 mm	0.32 "	14 mm	0.55 in	1	69 %	12-SIP Module	4.5 V	18 V	5.5 V	ITE (Commercial)	85 °C	-25 °C	Isolated Module	3000 V	Through Hole
aimtec AM2F-0524SZ	83 mA	2 W	32 mm	1.26 in	8.1 mm	0.32 "	14 mm	0.55 in	1	67 %	12-SIP Module	4.5 V	24 V	5.5 V	ITE (Commercial)	85 °C	-25 °C	Isolated Module	1000 V	Through Hole
aimtec AM2F-2412SH30Z	167 mA	2 W							1	70 %	12-SIP Module	21.6 V	12 V	26.4 V	ITE (Commercial)	85 °C	-25 °C	Isolated Module	3000 V	Through Hole
aimtec AM2F-0518SH52Z	111 mA	2 W	32 mm	1.26 in	8.1 mm	0.32 "	14 mm	0.55 in	1	69 %	12-SIP Module	4.5 V	18 V	5.5 V	ITE (Commercial)	85 °C	-25 °C	Isolated Module	5.2 kV	Through Hole
aimtec AM2F-2418SH30Z	111 mA	2 W							1	71 %	12-SIP Module	21.6 V	18 V	26.4 V	ITE (Commercial)	85 °C	-25 °C	Isolated Module	3000 V	Through Hole
aimtec AM2F-0515SZ	134 mA	2 W	32 mm	1.26 in	8.1 mm	0.32 "	14 mm	0.55 in	1	70 %	12-SIP Module	4.5 V	15 V	5.5 V	ITE (Commercial)	85 °C	-25 °C	Isolated Module	1000 V	Through Hole
aimtec AM2F-2403SH52Z	500 mA	2 W							1		12-SIP Module	21.6 V	3.3 V	26.4 V	ITE (Commercial)	85 °C	-25 °C	Isolated Module	5.2 kV	Through Hole
aimtec AM2F-2415SZ	134 mA	2 W							1	67 %	12-SIP Module	21.6 V	15 V	26.4 V	ITE (Commercial)	85 °C	-25 °C	Isolated Module	1000 V	Through Hole
aimtec AM2F-2418SZ	111 mA	2 W							1	71 %	12-SIP Module	21.6 V	18 V	26.4 V	ITE (Commercial)	85 °C	-25 °C	Isolated Module	1000 V	Through Hole
aimtec AM2F-1215SZ	134 mA	2 W							1	68 %	12-SIP Module	10.8 V	15 V	13.2 V	ITE (Commercial)	85 °C	-25 °C	Isolated Module	1000 V	Through Hole
