BXRA-56 Series

Manufacturer: BRIDGELUX

Catalog

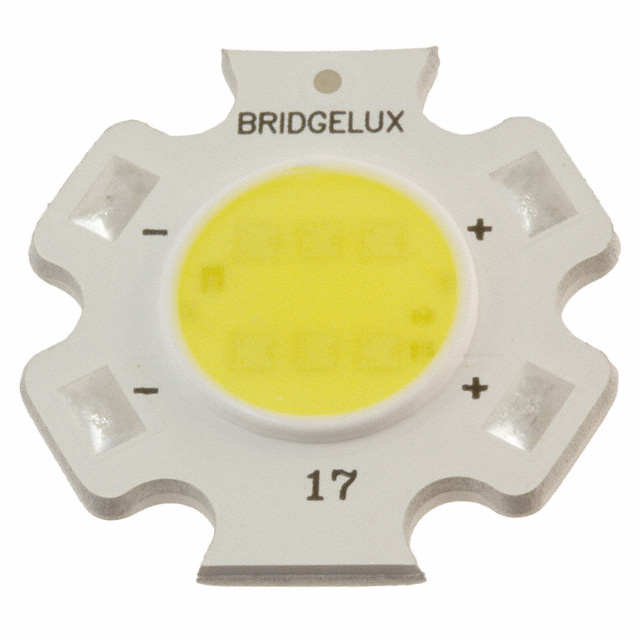

LED COB ES STAR WH STARBRD 5600K

Part	Configuration	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Height [z]	Current - Test	Temperature - Test	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	CCT (K)	CCT (K)	Lumens/Watt @ Current - Test	Type	Lens Type	Current - Max [Max]	Color	Light Emitting Surface (LES) [x]	Light Emitting Surface (LES) [y]
BRIDGELUX BXRA-56C0700-A-04	Starboard	19.9 mm	19.9 mm	18.8 V	120 °	3 mm	350 mA	25 °C	780 lm	70	4-Step MacAdam Ellipse	5600 K	118 lm/W	Chip On Board (COB)	Domed	500 mA	Cool White
BRIDGELUX BXRA-56C5300-H-00	Square	45.6 mm	2 in	23.5 V	120 °	3 mm	2.1 A	25 °C	6300 lm	70		5600 K	128 lm/W	Chip On Board (COB)	Domed	2.8 A	Cool White
BRIDGELUX BXRA-56C1600-B-00	Rectangle	22.8 mm	25.8 mm	29.3 V	120 °	3 mm	500 mA	25 °C	1930 lm	70		5600 K	132 lm/W	Chip On Board (COB)	Domed	750 mA	Cool White
BRIDGELUX BXRA-56C1000-A-00	Starboard	19.9 mm	19.9 mm	28.1 V	120 °	3 mm	350 mA	25 °C	1120 lm	70		5600 K	114 lm/W	Chip On Board (COB)	Domed	500 mA	Cool White	11 mm	10 mm
BRIDGELUX BXRA-56C1100-B-00	Rectangle	22.8 mm	25.8 mm	20.5 V	120 °	3 mm	500 mA	25 °C	1340 lm	70		5600 K	131 lm/W	Chip On Board (COB)	Domed	750 mA	Cool White
BRIDGELUX BXRA-56C9000-J-00	Square	45.6 mm	2 in		120 °	3 mm	2.8 A	25 °C	10060 lm	70		5600 K	122 lm/W	Chip On Board (COB)	Domed	3.5 A	Cool White
BRIDGELUX BXRA-56C2600-B-00	Rectangle	22.8 mm	25.8 mm	36.2 V	120 °	3 mm		25 °C	3150 lm	70		5600 K		Chip On Board (COB)	Domed	750 mA	Cool White
BRIDGELUX BXRA-56C9000-J-04	Square	45.6 mm	2 in		120 °	3 mm	2.8 A	25 °C	10060 lm	70	4-Step MacAdam Ellipse	5600 K	122 lm/W	Chip On Board (COB)	Domed	3.5 A	Cool White
BRIDGELUX BXRA-56C5300-H-04	Square	45.6 mm	2 in	23.5 V	120 °	3 mm	2.1 A	25 °C	6300 lm	70	4-Step MacAdam Ellipse	5600 K	128 lm/W	Chip On Board (COB)	Domed	2.8 A	Cool White
BRIDGELUX BXRA-56C0700-A-00	Starboard	19.9 mm	19.9 mm	18.8 V	120 °	3 mm	350 mA	25 °C	780 lm	70		5600 K	118 lm/W	Chip On Board (COB)	Domed	500 mA	Cool White
