ADP124 Series

5.5V Input, 500 mA, Low Quiescent Current, CMOS Linear Regulator with 31 Fixed-output Voltages

Catalog

5.5V Input, 500 mA, Low Quiescent Current, CMOS Linear Regulator with 31 Fixed-output Voltages

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage Dropout (Max) [Max]	Protection Features	Current - Output	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed)	PSRR	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Control Features	Supplier Device Package	Number of Regulators	Package / Case	Output Configuration	Package / Case [custom]	Regulator Type	Channels per IC	Board Type	Supplied Contents	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part
Analog Devices ADP124ACPZ-3.3-R7	Surface Mount	125 °C	-40 °C	1.81 mOhm	0.23 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	500 mA	280 µA	3.3 V	60 dB	105 çA	5.5 V	Enable	8-LFCSP-UD (2x2)	1	8-UFDFN Exposed Pad CSP	Positive
Analog Devices ADP124ARHZ-1.8-R7	Surface Mount	125 °C	-40 °C	1.81 mOhm		Over Current Over Temperature Under Voltage Lockout (UVLO)	500 mA	280 µA	1.8 V	60 dB	105 çA	5.5 V	Enable	8-MSOP-EP	1	8-MSOP 8-TSSOP Exposed Pad	Positive	0.118 in 3 mm
Analog Devices ADP124ACPZ-2.9-R7	Surface Mount	125 °C	-40 °C	1.81 mOhm	0.23 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	500 mA	280 µA	2.9 V	60 dB	105 çA	5.5 V	Enable	8-LFCSP-UD (2x2)	1	8-UFDFN Exposed Pad CSP	Positive

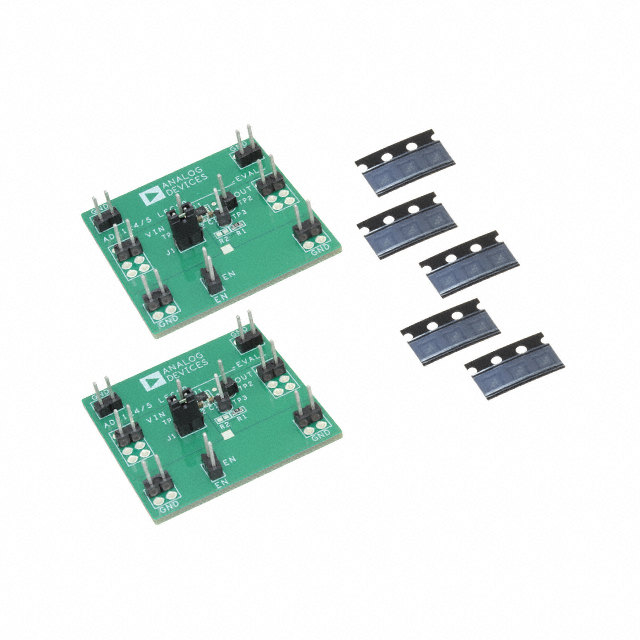

Analog Devices ADP124CPZ-REDYKIT							500 mA												Positive Fixed	1 - Single	Fully Populated	Board(s)	3.3 V	2.3 V	5.5 V	ADP124
Analog Devices ADP124ARHZ-3.0-R7	Surface Mount	125 °C	-40 °C	1.81 mOhm	0.23 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	500 mA	280 µA		60 dB	105 çA	5.5 V	Enable	8-MSOP-EP	1	8-MSOP 8-TSSOP Exposed Pad	Positive	0.118 in 3 mm
Analog Devices ADP124ARHZ-2.8-R7	Surface Mount	125 °C	-40 °C	1.81 mOhm	0.23 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	500 mA	280 µA	2.8 V	60 dB	105 çA	5.5 V	Enable	8-MSOP-EP	1	8-MSOP 8-TSSOP Exposed Pad	Positive	0.118 in 3 mm
Analog Devices ADP124ACPZ-1.8-R7	Surface Mount	125 °C	-40 °C	1.81 mOhm		Over Current Over Temperature Under Voltage Lockout (UVLO)	500 mA	280 µA	1.8 V	60 dB	105 çA	5.5 V	Enable	8-LFCSP-UD (2x2)	1	8-UFDFN Exposed Pad CSP	Positive
Analog Devices ADP124ARHZ-2.85-R7	Surface Mount	125 °C	-40 °C	1.81 mOhm	0.23 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	500 mA	280 µA	2.85 V	60 dB	105 çA	5.5 V	Enable	8-MSOP-EP	1	8-MSOP 8-TSSOP Exposed Pad	Positive	0.118 in 3 mm
Analog Devices ADP124ARHZ-2.9-R7	Surface Mount	125 °C	-40 °C	1.81 mOhm	0.23 V	Over Current Over Temperature Under Voltage Lockout (UVLO)	500 mA	280 µA	2.9 V	60 dB	105 çA	5.5 V	Enable	8-MSOP-EP	1	8-MSOP 8-TSSOP Exposed Pad	Positive	0.118 in 3 mm

Catalog

5.5V Input, 500 mA, Low Quiescent Current, CMOS Linear Regulator with 31 Fixed-output Voltages

Key Features

• Input voltage supply range: 2.3 V to 5.5 V

• 500 mA maximum output current

• Fixed and adjustable output voltage versions

• 1% initial accuracy

• Very low dropout voltage: 130 mV

• Up to 31 fixed-output voltage options available from 1.75 V to 3.3 V

• See datasheet for additional features

Description

The ADP124 /ADP125are low quiescent current, low dropout linear regulators. They are designed to operate from an input voltage between 2.3 V and 5.5 V and to provide up to 500 mA of output current. The low 130 mV dropout voltage at a 500 mA load improves efficiency and allows operation over a wide input voltage range.The low 210 μA of quiescent current with a 500 mA load makes the ADP124 / ADP125 ideal for battery-operated portable equipment. The ADP124 is capable of 31 fixed-output voltages from 1.75 V to 3.3 V. The ADP125 is the adjustable version of the device and allows the output voltage to be set between 0.8 V and 5.0 V by an external voltage divider. The ADP124/ADP125 are specifically designed for stable operation with tiny 1 μF ceramic input and output capacitors to meet the requirements of high performance, space constrained applications.The ADP124 / ADP125 have an internal soft start that gives a constant start-up time of 350 μs. Short-circuit protection and thermal overload protection circuits prevent damage in adverse conditions. The ADP124 / ADP125 are available in an 8-lead exposed paddle MSOP package. When compared with the standard MSOP package, the exposed paddle MSOP package has lower thermal resistance (θJA). The lower thermal resistance package allows the ADP124 / ADP125 to meet the needs of a variety of portable applications while minimizing the rise in junction temperature.APPLICATIONSDigital camera and audio devicesPortable and battery-powered equipmentAutomatic meter reading (AMR) metersGPS and location management unitsMedical instrumentationPoint of load power
